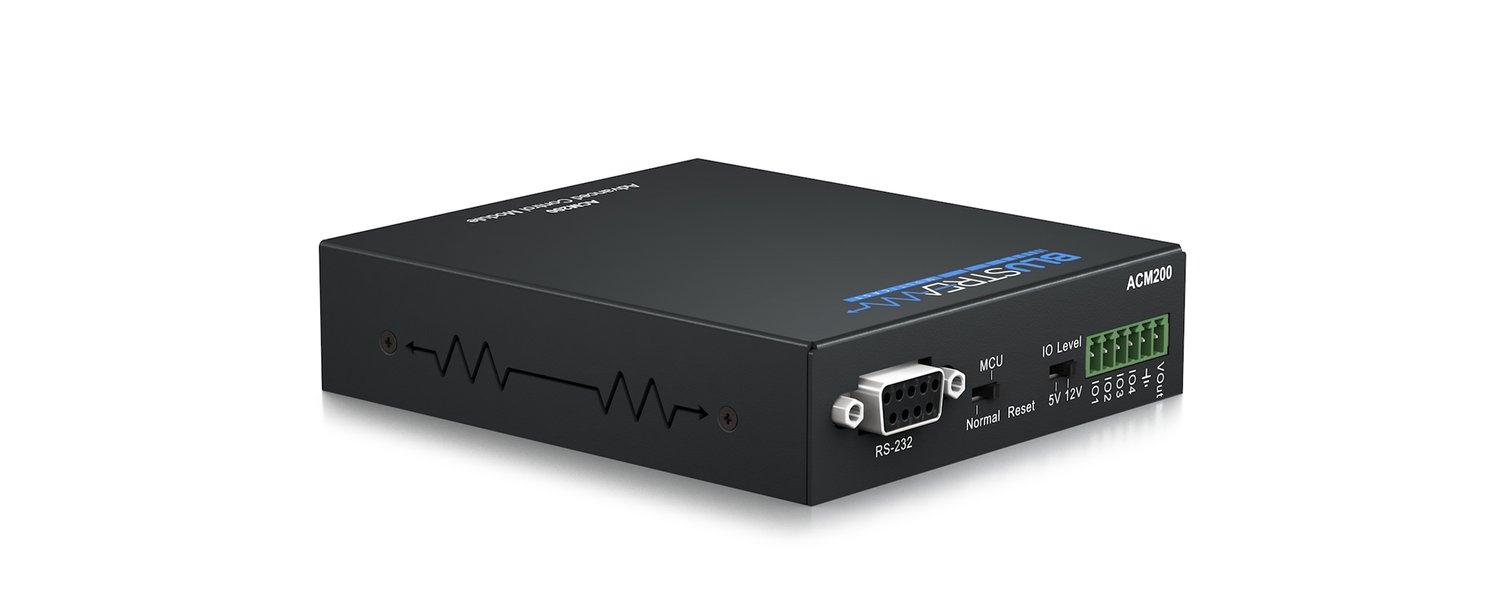

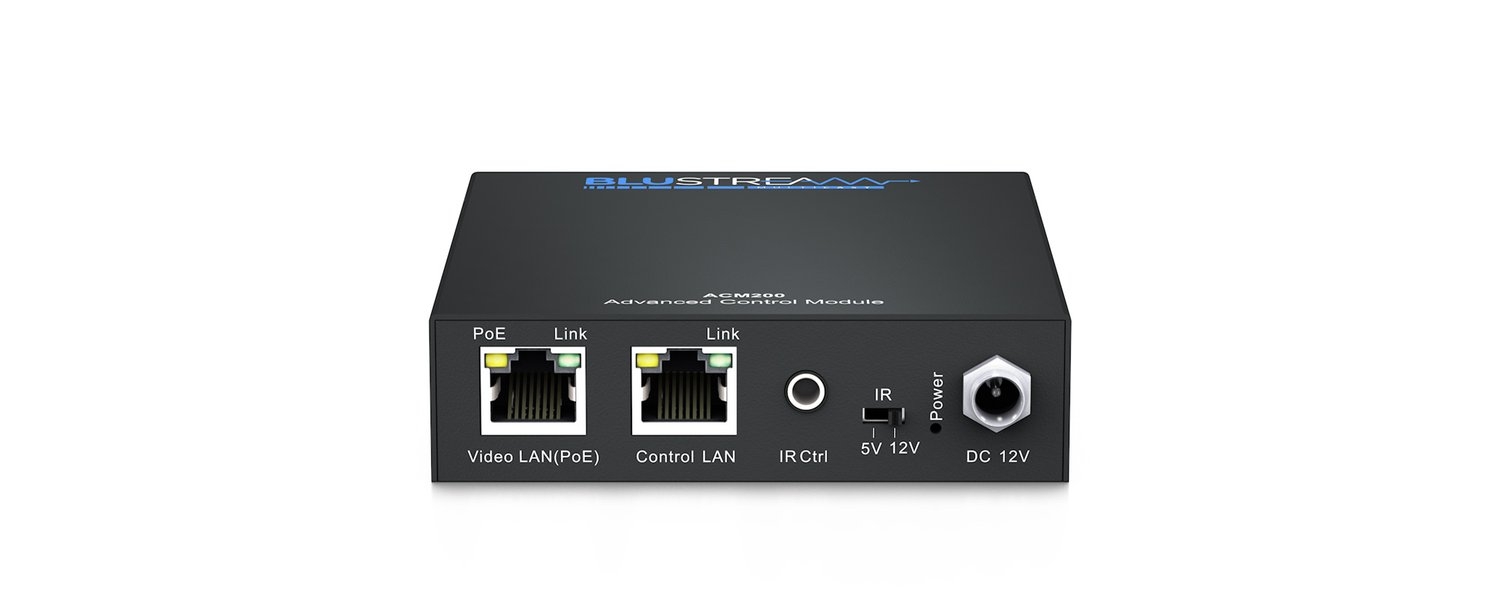

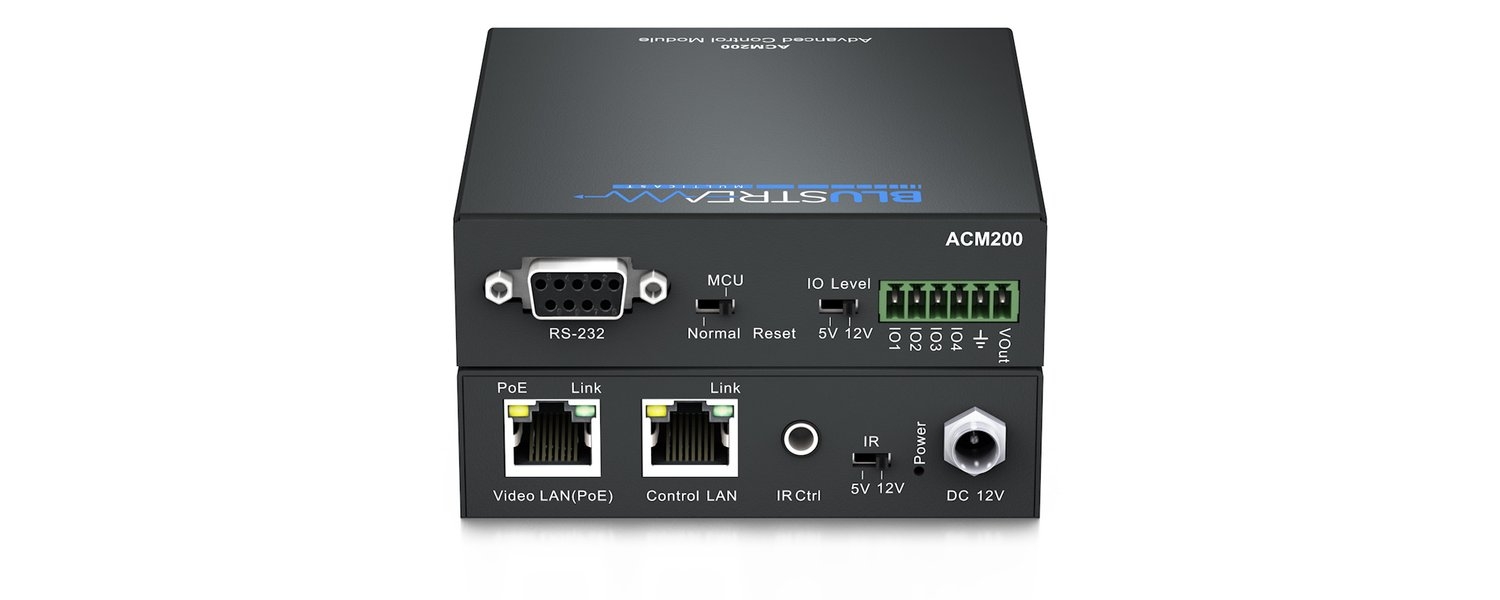

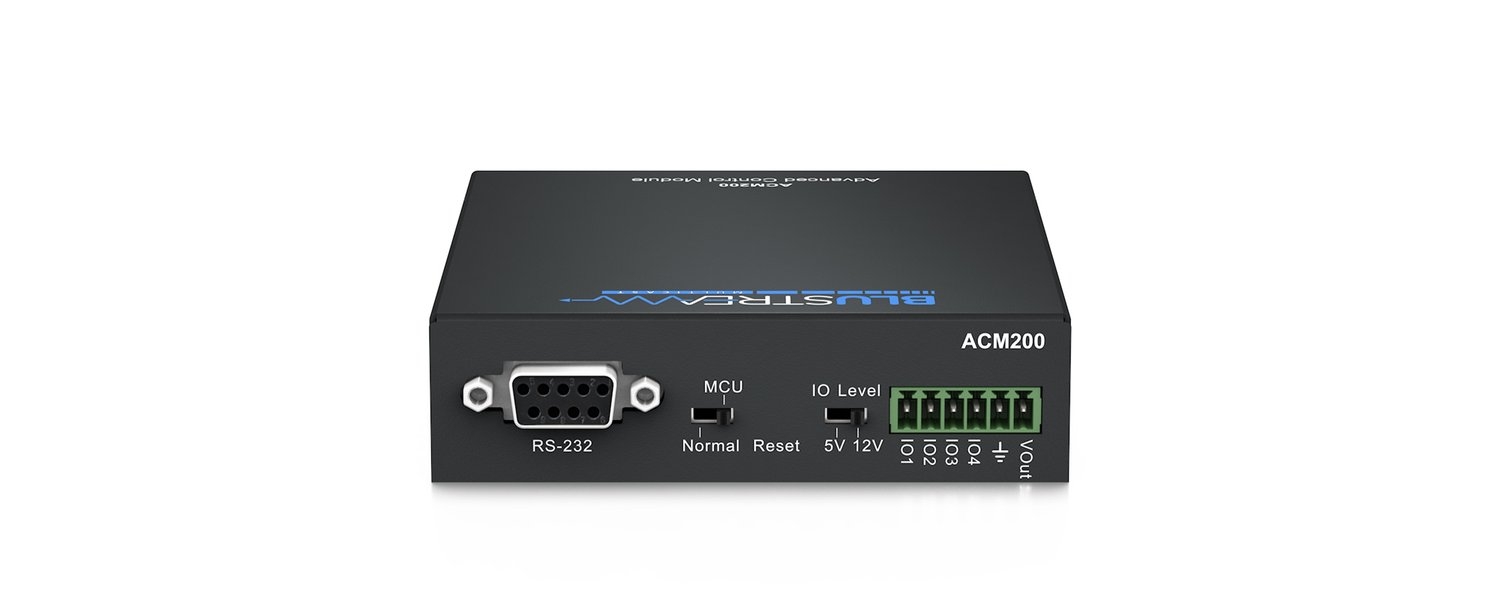

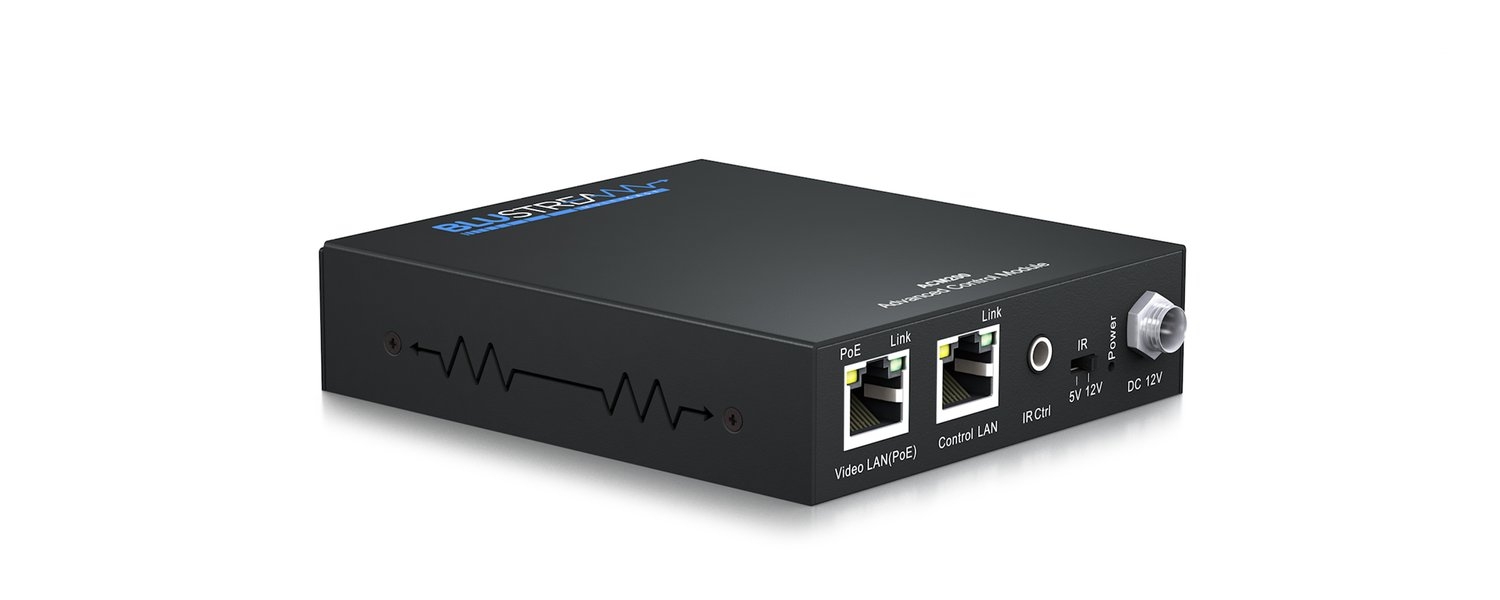

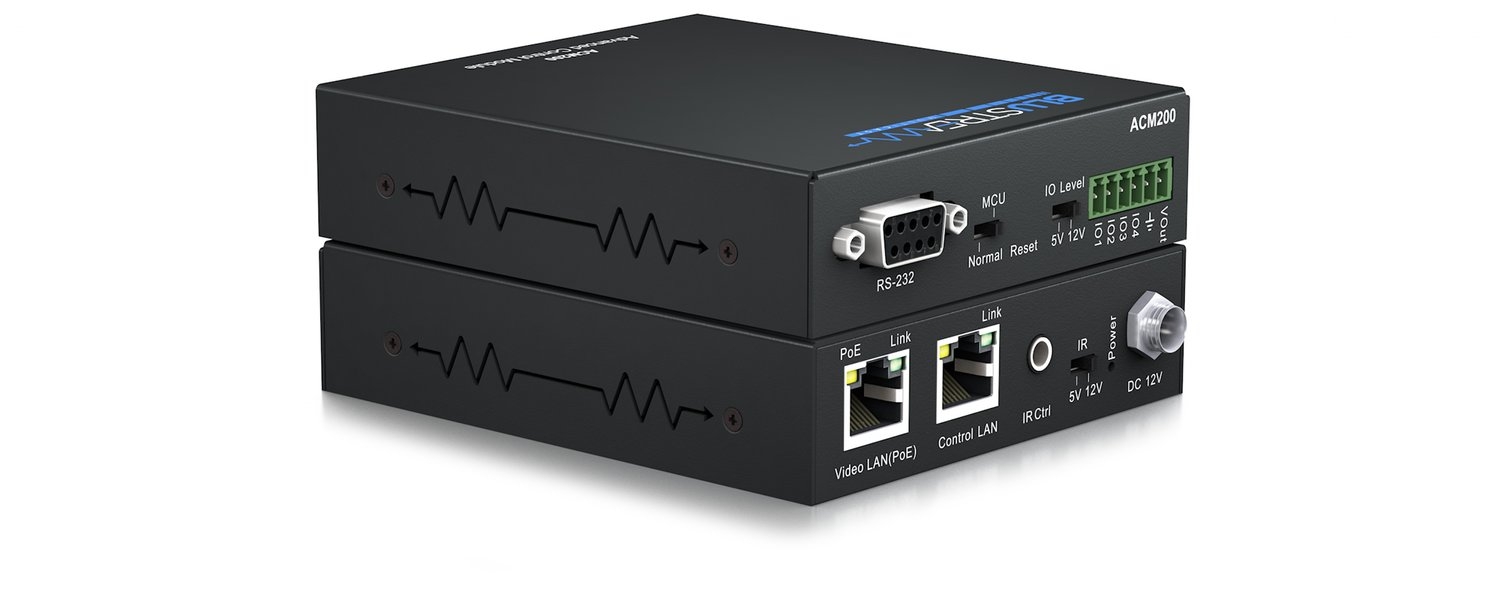

ACM200
Multicast Advanced Control Module for TCP/IP, RS-232 and IR Control of Blustream Multicast Systems with Web GUI
- Web interface module for configuration and control of the Blustream Multicast system
- Intuitive 'drag & drop' source selection with video preview feature for active monitoring of system status
- Advanced signal management for independent routing of IR, RS-232, USB / KVM, audio and video
- Auto system configuration
- 2 x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in:
Better system performance as network traffic is separated
No advanced network setup required
Independent IP address per LAN connection
Allows simplified TCP/IP control of Multicast system - RS-232 integration for control of Multicast system
- IR integration for control of Multicast system
- Video wall control functionality for up to a maximum of 9 x 9 array
- PoE (Power over Ethernet) to power Blustream product from a PoE switch
- Local 12V/2A power supply (optional) should Ethernet switch not support PoE (PSU not supplied)
- Support for iOS and Android App control
- 3rd Party drivers available for all major home control brands
Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The ACM200 Advanced Control Module allows for advanced third party control of the Multicast system using TCP/IP, RS-232 and IR.
The ACM200 includes a web interface module for control and configuration of the Multicast system and features 'drag and drop' source selection with video preview and independent routing of IR, RS-232, USB/KVM, audio and video.
Pre-built Blustream product drivers simplify Multicast product installation and negate the need for an understanding of complex network infrastructures.
| Ethernet Port: | 2 x LAN RJ45 connector (1 x PoE support) |
|---|---|
| RS-232 Serial Port: | 1 x DB-9 female |
| RS-232 & I/O Port: | 1 x 6-Pin Phoenix connector |
| IR Input Ports: | 1 x 3.5mm stereo jack |
| PoE draw: | 4.0W (typical), 4.5W (max load) |
| Dimensions (W x D x H ): | 96mm x 110mm x 26mm |
| Shipping Weight: | 0.6kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C) |
