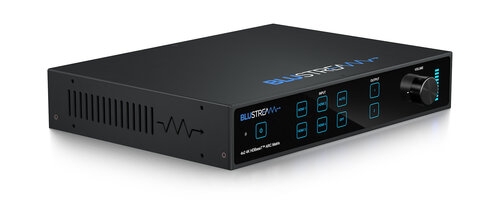

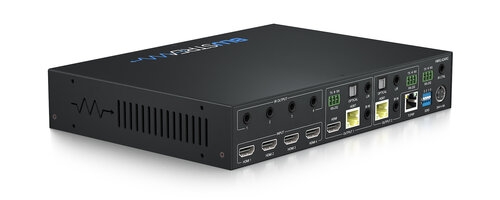

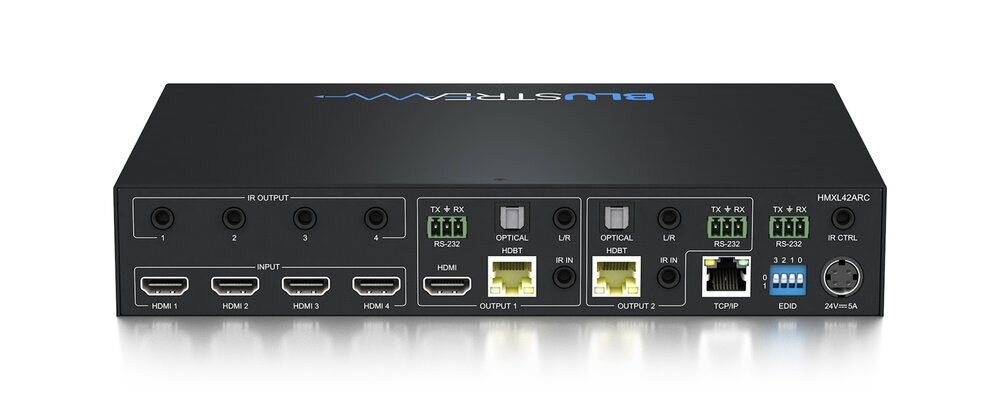

HMXL42ARC-KIT

4x2 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR, PoC), Simultaneous HDMI / HDBaseT™ on output 1, video Smart Scaling on HDBaseT outputs, Auto Source Selection, Audio Breakout, RS-232 & TCP / IP Control, HDCP2.2 compliant, Web-GUI, includes 2x HDBaseT™ Receivers

• Tecnología avanzada HDBaseT™ que ofrece distribución de video y audio a través de un solo cable CAT.
• La conversión avanzada del espacio de color (CSC) es compatible con la especificación HDMI 2.0 de 18 Gbps, incluido HDR
• Cuenta con 4 entradas HDMI que se pueden enrutar de forma independiente a 2 salidas HDBaseT™.
• La salida 1 cuenta con salida simultánea HDMI y HDBaseT™
• Video Smart Scaling en salidas HDBaseT™ que permite que una pantalla solo admita resoluciones de video más bajas (4K 60Hz 4:2:0 o 1080p) para recibir contenido de video 4K 60Hz 4:4:4 mientras muestra la máxima resolución original 4K UHD en el video restante salidas,Admite video 4K 60Hz 4: 4: 4 UHD hasta 40 m,Extiende video HDMI 1080p hasta 70m.
• Admite todas las resoluciones de video estándar de la industria, incluidas VGA-WUXGA y 480i-4K.
• Admite todos los formatos de audio HDMI digitales conocidos, incluidos Dolby TrueHD, Atmos.
• Transmisiones DTS-HD Master Audio y DTS:X
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR • Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• 8 x 2 audio matrix that is independently controllable from video.
• Audio source inputs include: - 4 x audio breakout from HDMI source - 2 x audio breakout from zone outputs - 2 x ARC from zone outputs
• Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs
• Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
• 3rd Party drivers available for all major control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Supplied with 2 x RX70CS HDBaseT™ receivers
