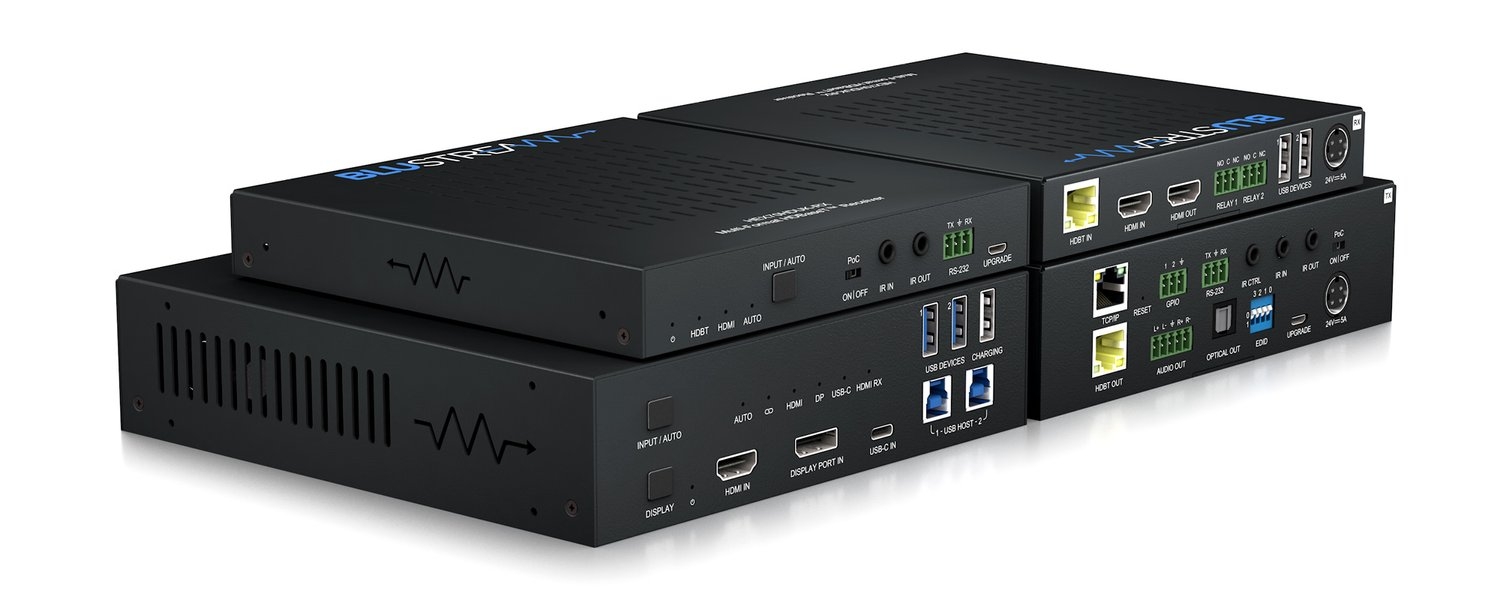

HEX70HDUK-KIT
Multi Format HDBaseT™ CSC Extender Set Supporting HDMI2.0 4K 60Hz 4:4:4 up to 40m (1080p up to 70m)
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
- Features 1 x HDMI, 1 x USB-C and 1 x DisplayPort™ input on the HDBaseT™ Transmitter with manual or auto source selection
- Features 1 x local HDMI input on the HDBaseT™ Receiver for connection of a source local to the display
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p up to a distance of 70m over single CAT cable
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports USB Type C up to 4K UHD 60Hz 4:4:4 DP1.2 with 60W charging capability*
- Supports DisplayPort™ up to 4K UHD 60Hz 4:4:4 DP1.2
- Features 2 x USB-Type A devices (RX - peripherals), 2 x USB-Type A devices (TX - peripherals) and 2 x USB Type-B (TX - host source specific) that support a combined data transmission bandwidth of up to 250Mbps
- USB Type-A connections support charging of devices up to 500mA when there is an active connection to a Host device
- Independent USB Type-A connection to support charging only of devices up to 5V 2A
- Audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently**
- Bi-directional IR pass-through
- Auto display on/off feature allowing control of display at the HDBaseT™ Receiver via CEC or RS-232
- Web interface module for control and configuration of HEX70HDUK-KIT
- Control via front panel, IR, RS-232 and TCP/IP
- Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- Advanced EDID ad HDCP management
The HEX70HDUK-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseT™ multi-format solution utilising CSC technology to deliver HDMI, USB-C and DisplayPort™ up to lengths of 40m (70m at 1080p) over a single CAT cable
The HEX70HDUK-KIT provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseT™ Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through.
The HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.

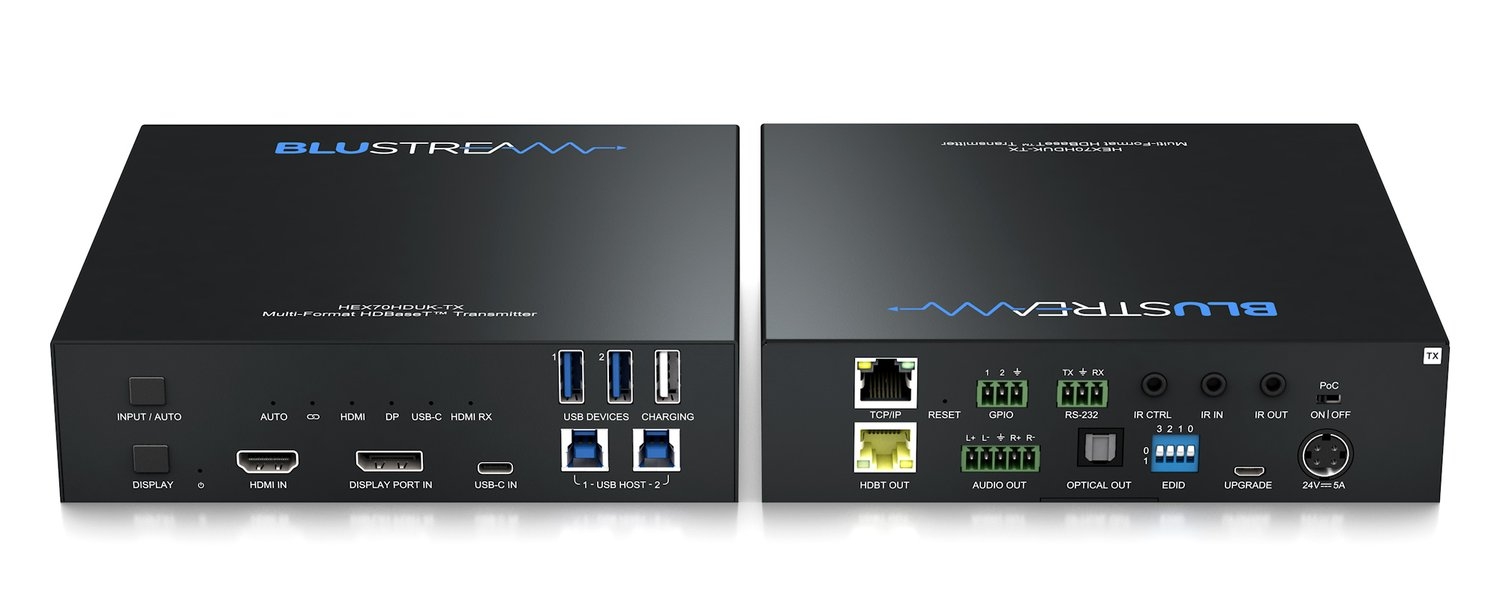

| Modelo | HEX70HDUK-TX |
|---|---|
| Video Input Connectors: | 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort™ |
| Video Output Connectors: | 1 x HDBaseT™ RJ45 connector |
| RS-232 Serial Port: | 1 x 3-Pin Phoenix connector |
| TCP/IP Control: | 1 x RJ45, female |
| IR Input Ports: | 2 x 3.5mm stereo jack |
| IR Output Ports: | 1 x 3.5mm mono jack |
| USB Ports: | 3 x USB Type-A (1 x for charging only), 2 x USB Type-B |
| EDID: | 4-pin DIP switch |
| Product Upgrade: | 1 x Micro USB, female |
| Local Power Input: | 1 x 24V/5A 4-pin DIN connector |
| Casing Dimensions (W x H x D): | 183mm x 44mm x 173mm |

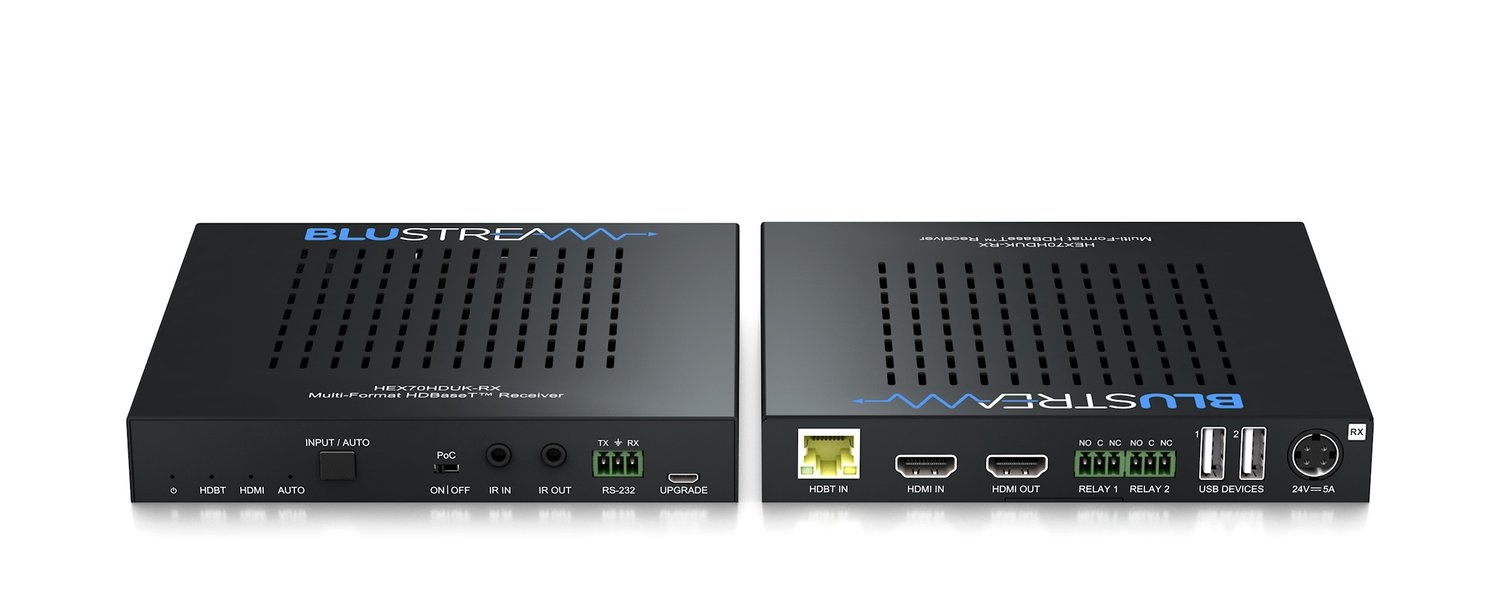

| Modelo | HEX70HDUK-RX |
| Video Input Connectors: | 1 x HDMI Type A, 19-pin, female, 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors: | 1 x HDMI Type A, 19-pin, female |
| RS-232 Serial Port: | 1 x 3-pin Phoenix connector |
| Relay Control: | 2 x 3-pin Phoenix connector |
| IR Input Ports: | 1 x 3.5mm stereo jack |
| IR Output Ports: | 1 x 3.5mm mono jack |
| USB Ports: | 2 x USB Type-A |
| EDID: | 4-pin DIP switch |
| Product Upgrade: | 1 x Micro USB, female |
| Local Power Input: | 1 x 24V/5A 4-pin DIN connector |
| Casing Dimensions (W x H x D): | 155mm x 24mm x 155mm |
| Shipping Weight: | 3.35kg |
| Power Supply: | 24V/5A 4-pin DIN connector |
| Operating Temperature: | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature: | -4°F to 140°F (-25°C to +70°C) |
