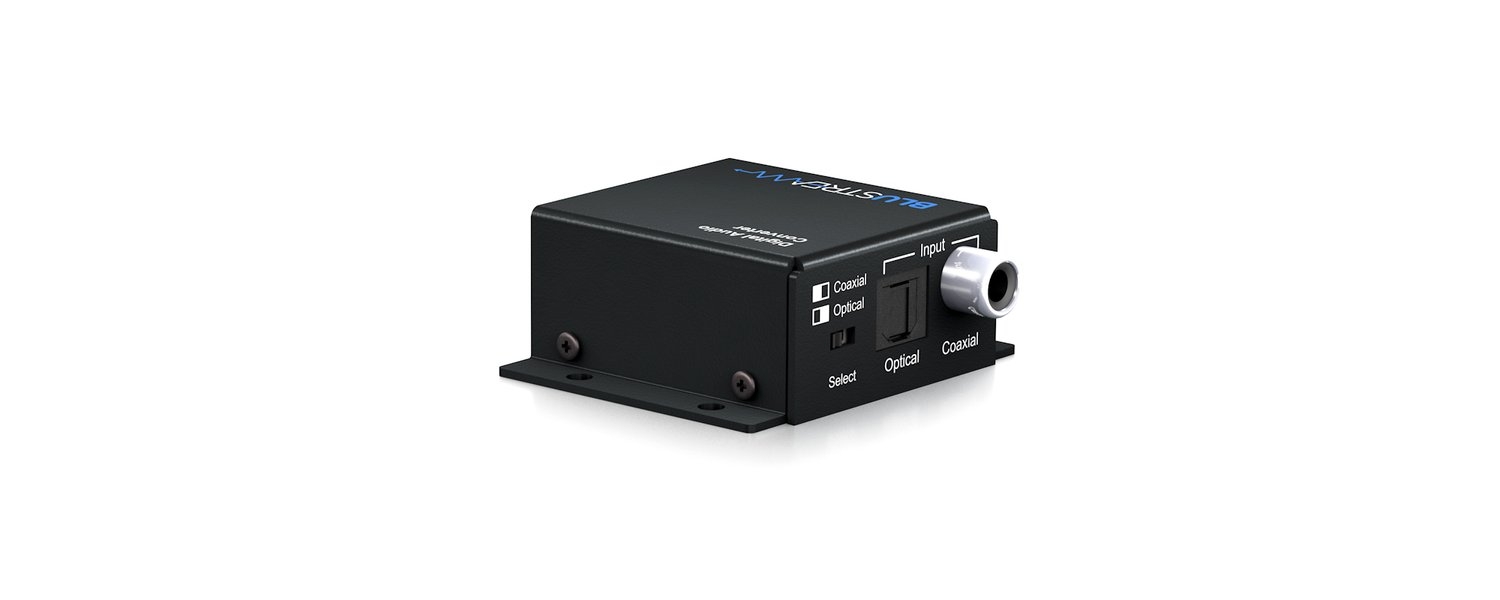

DIG11AU
Digital Audio Converter
- Converts digital audio formats (optical to optical and coax, or, coax to optical or coax)
- Both optical and coaxial digital outputs work concurrently regardless of input type selected
- Supports sample rates 32kHz, 44.1kHz, 48kHz, 96kHz & 192kHz up to 24-bit resolution
- Plug-and-play solution
Our DIG11AU is designed to convert digital audio signals from coaxial or optical inputs.
The outputs are simultaneous so audio can be distributed to multiple locations.
The DIG11AU supports 192kHz sample rates for enhanced sound reproduction.
| Audio Input Connectors: | 1 x Optical (SPDIF) & 1 x Coax RCA (SPDIF) |
|---|---|
| Output Connectors: | 1 x Optical (SPDIF) & 1 x Coax RCA (SPDIF) |
| Product Dimensions (W x D x H): | 65 x 60 x 25mm (with wings & connections) |
| Product Dimensions (W x D x H): | 50 x 45 x 25mm (without wings & connections) |
| Carton / Box Dimensions (W x D x H): | 165 x 110 x 85mm |
| Shipping Weight: | 0.3kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C) |
| Power Supply: | 5V/1A DC, barrel type connector |
| Wall Mounting Wings | Included |
| Tipo | Nombre | Formato | Idioma |
|---|---|---|---|
| Sin documentación asociada. | |||
