IP500UHD-TZ
IP Multicast UHD Video Transceiver over 10Gb Managed Network, HDMI 2.0 4K 60Hz 4:4:4, Bi-directional IR, RS-232 & USB/KVM, PoE+, Ethernet pass-through, Analogue Audio Embedding, Analogue Audio Breakout, and HDCP 2.2
- Advanced 18Gbps UHD Video over 10Gb Managed Network with visually lossless compression and zero latency
- Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4, and with 10/12-bit HDR sources, including Dolby Vision
- Transceiver can be configured as a point of transmission or a receiver as required
- Supports video scaling and single-frame switching
- Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio and DTS:X transmissions
- Support fixed signal routing function for IR, RS-232, CEC and USB
- USB end-to-end / point-to-point pass-through
- Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
- Bi-directional 10/100/1000BaseT Ethernet pass-through
- Supports bi-directional 5V or 12V IR pass-through
- PoE+ (Power over Ethernet) to power Blustream Multicast products from PoE+ switch
- HDCP 2.2 compliant with advanced EDID management
- Local 12V 2.5A power input (should Ethernet switch not support PoE+, PSU sold separately)
- Features 4 operational modes:
- Matrix distribution (requires 10Gb network switch)
- Video wall (requires 10Gb network switch)
- Multiview mode (requires 10Gb network switch)
- One-to-one HDMI extender (no network switch required)
The Blustream IP500UHD Transceiver is a SDVoE AV over IP solution that provides the highest-quality, un-compromised 18Gbps 4K with zero latency Audio/Video extension over copper or optical fibre 10Gb Managed Networks.
The IP500UHD-TZ includes support for HDMI 2.0 including distribution of HDR (High Dynamic Range), 10-bit colour content, and multi-channel HD audio signals.
The IP500UHD-TZ provides advanced features including PoE+ and transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB (KVM) and 1Gb Ethernet.
The IP500UHD-TZ is ideal for mission-critical 18Gbps HDMI installations where multiple transceivers can be combined with one or more 10GbE copper / fibre switches to form a distributed video matrix, multi-viewer, or video wall system.

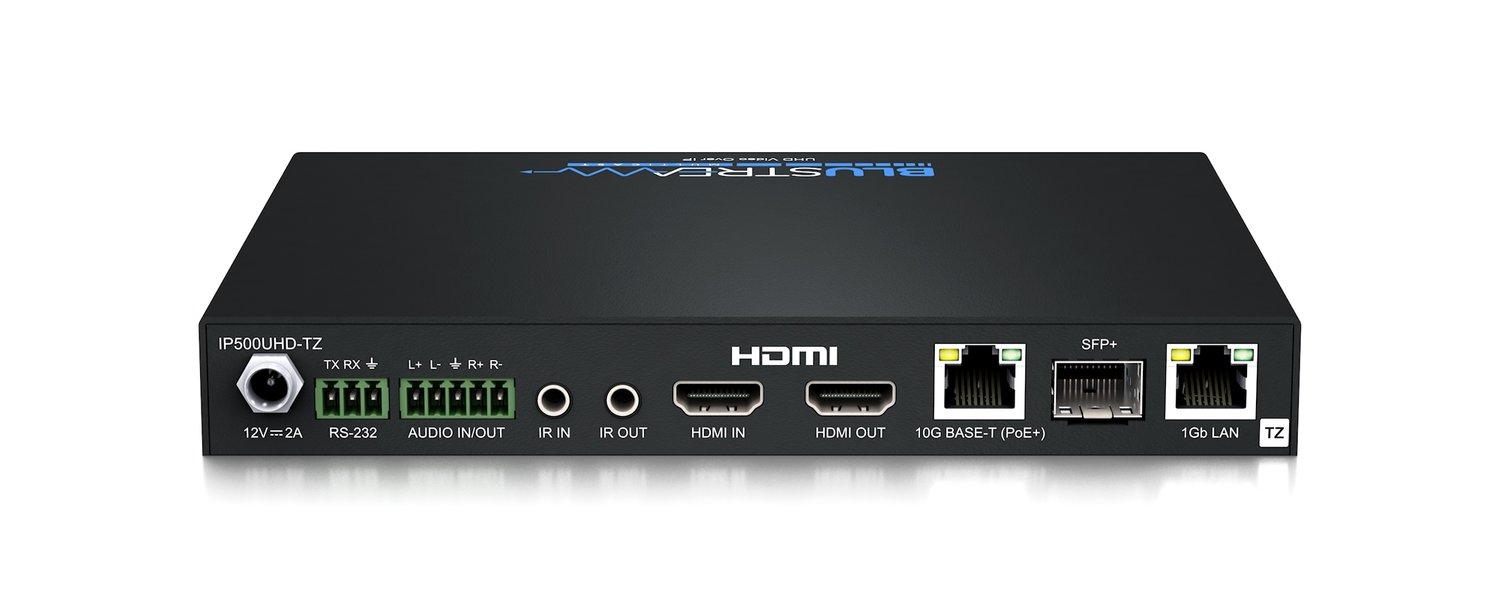

| Video input: | 1 x HDMI Type A, female |
|---|---|
| Video output: | 1 x HDMI Type A, female |
| Latency: | 100 microseconds (0.1ms) with no video compression (<16ms with mild video compression - 10-18Gbps HDMI signals) No latency on HDMI Loop out when in Encoder / Transmitter mode |
| Audio input/Output: | 1 x 5-pin Phoenix connector |
| Ethernet port: | 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through |
| RS-232 serial port: | 1 x 3-pin Phoenix connector |

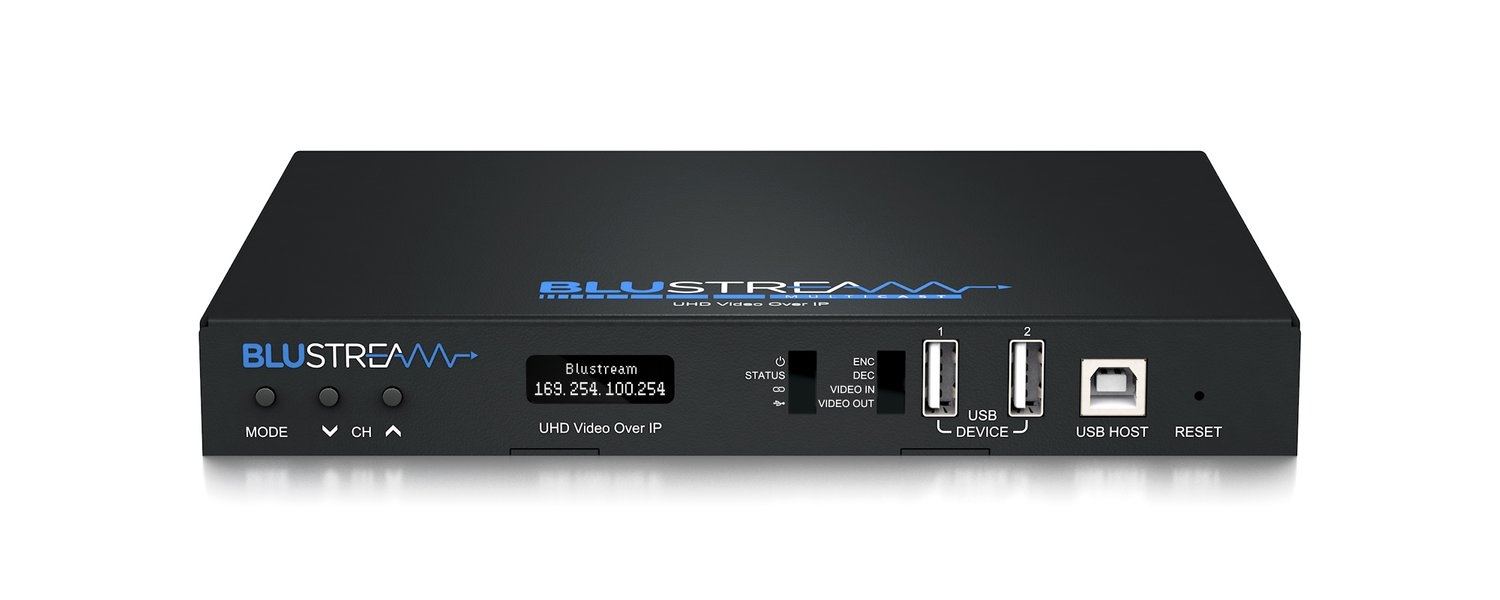

| USB/KVM Port: | 1 x USB-Type B (host) , 2x USB-Type A (device) |
| IR input: | 1 x 3.5mm stereo jack |
| IR output: | 1 x 3.5mm mono jack |
| PoE+ draw: | 12.8W (typical), 13.5W (max load) |
| Dimensions (WxDxH): | 191mm x 153mm x 25mm |
| Dimensions Including Connections (WxDxH): | 191mm x 158mm x 25mm |
| Shipping Weight: | 1kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature : | -4°F to 140°F (-20°C to 60°C) |
