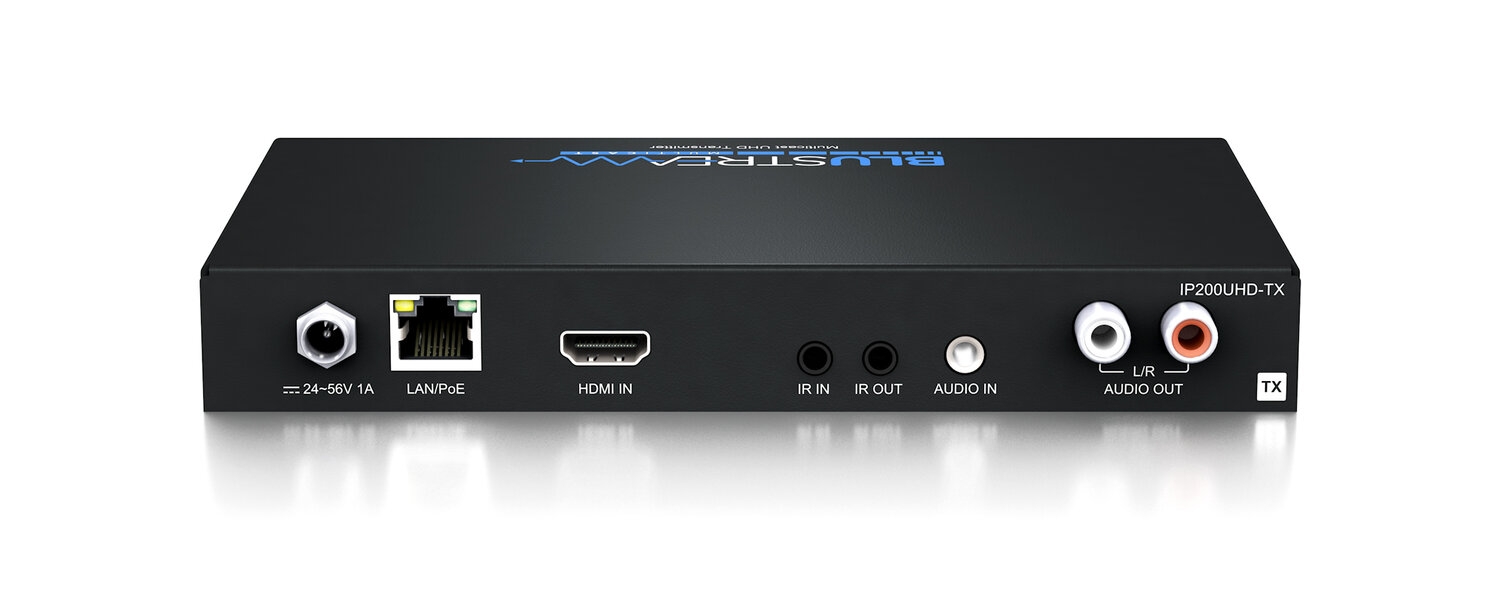

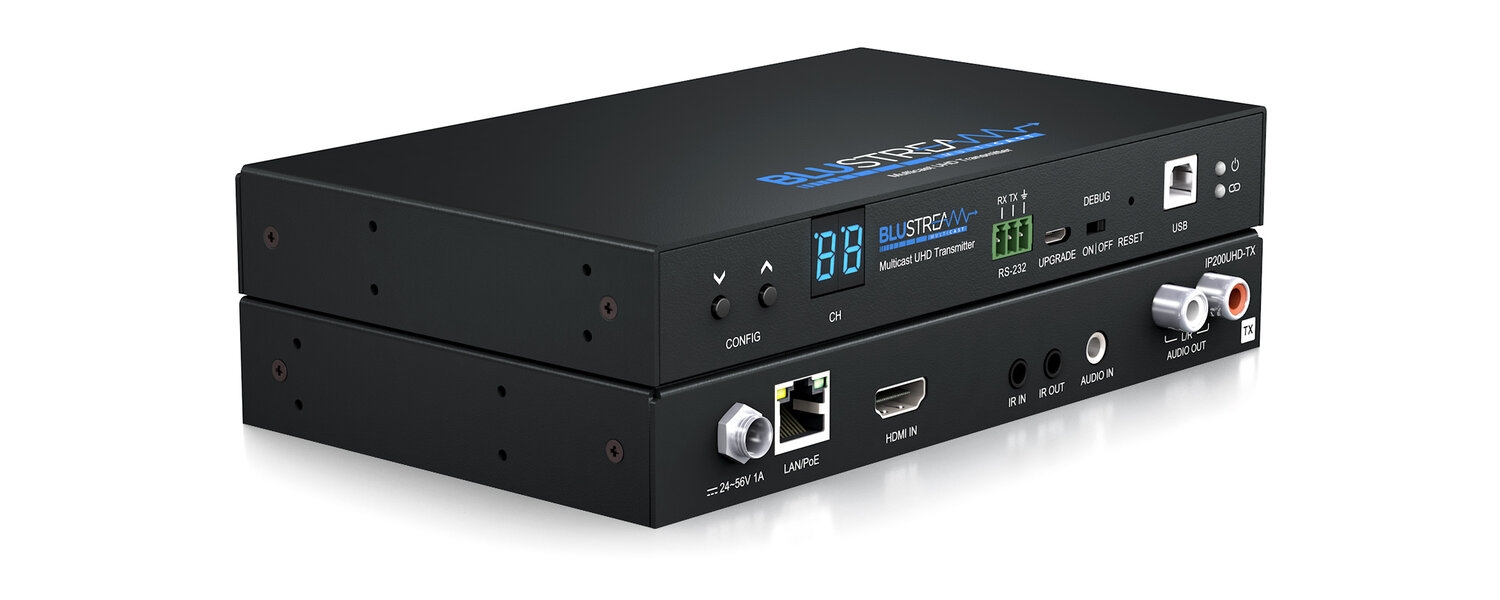

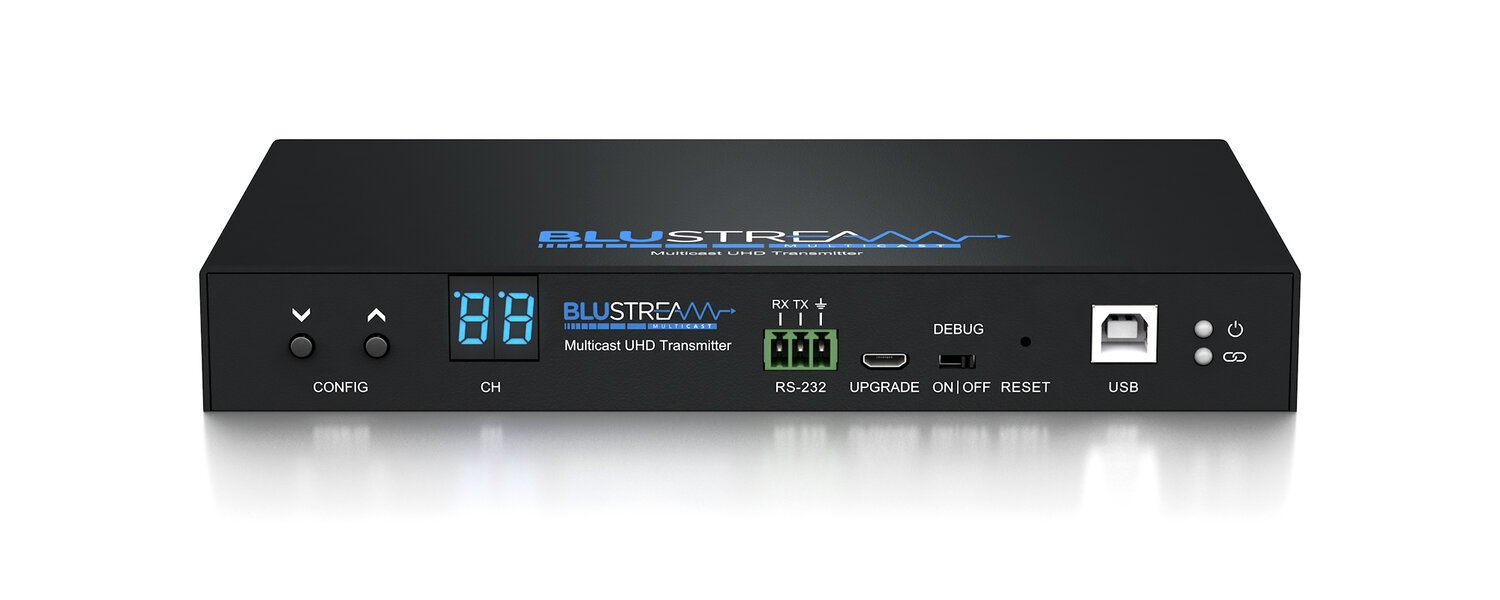

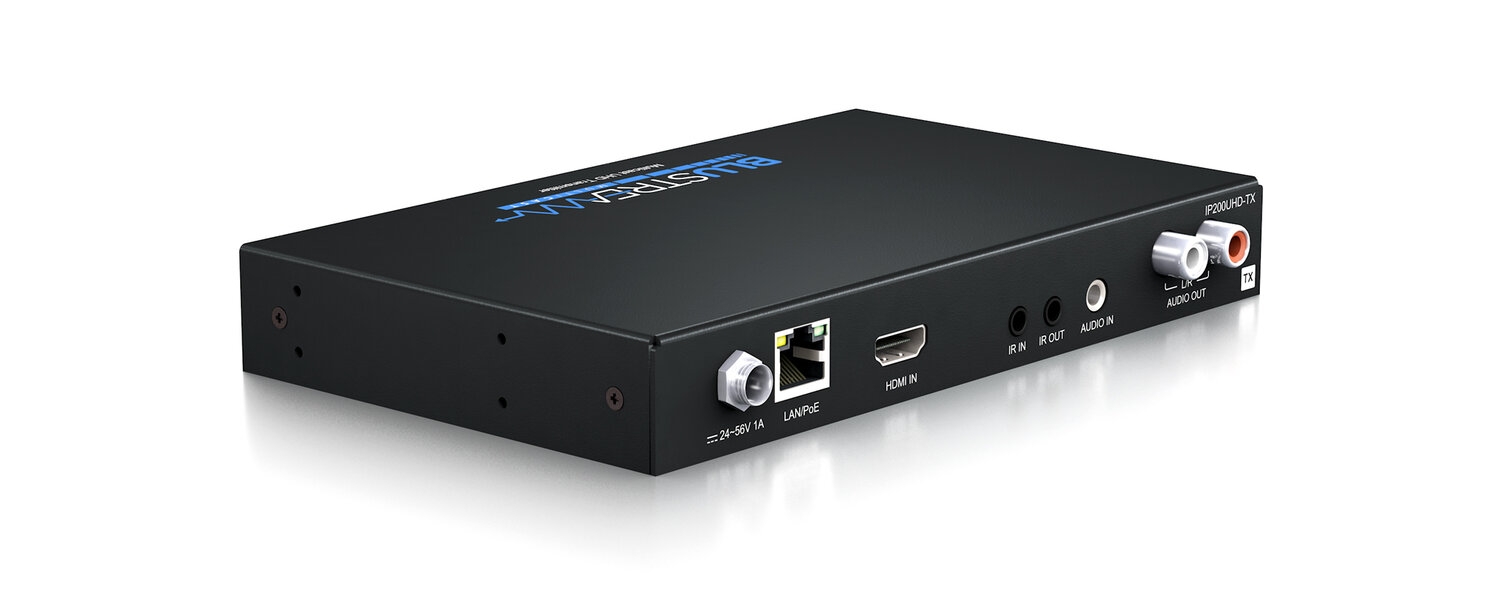

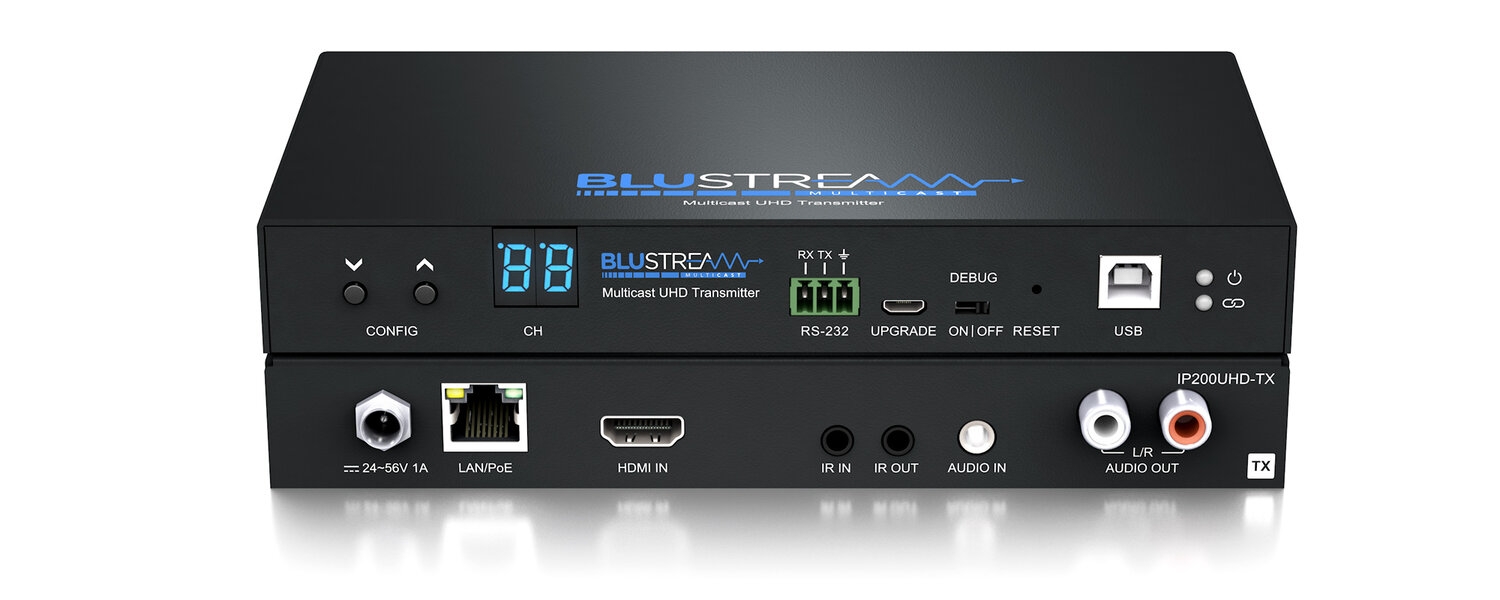

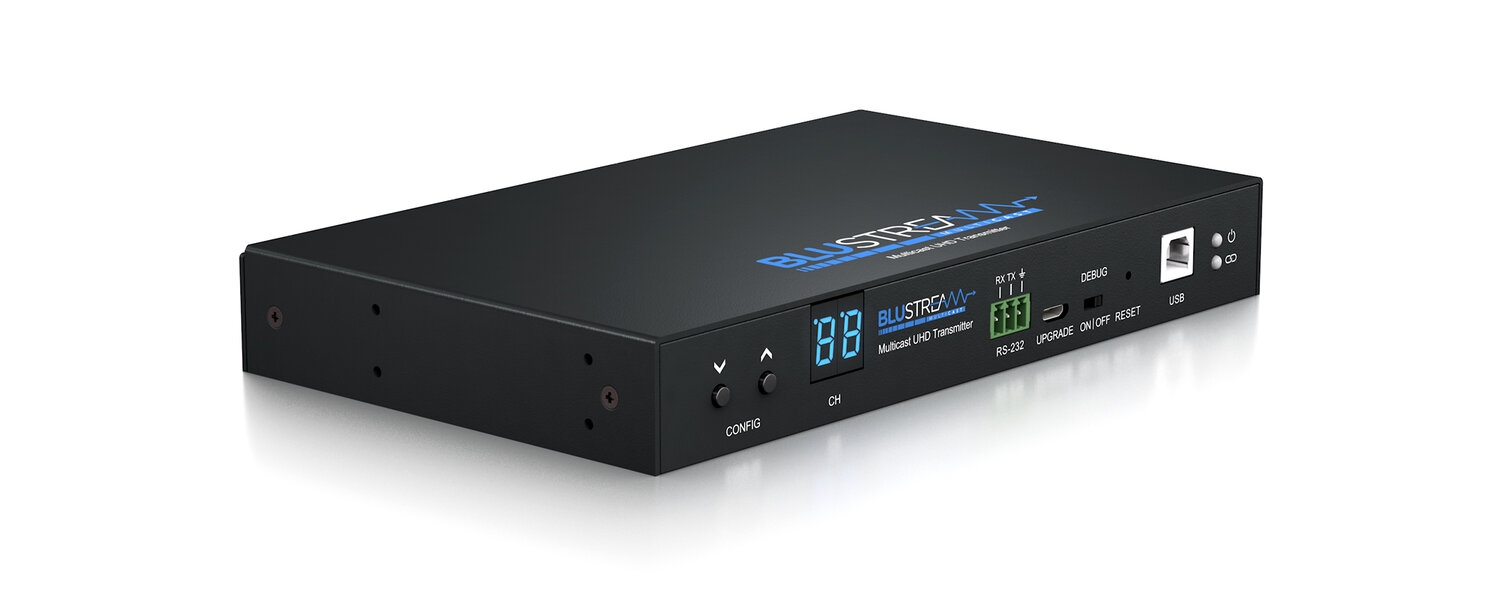

IP200UHD-TX
IP Multicast UHD Video Transmitter over 1Gb Network , Bi-directional IR, RS-232 & USB / KVM, PoE, Analogue Audio Embedding, Analogue Audio Breakout and HDCP 2.2
- Features 4 operational modes:
- Matrix distribution (requires 1GB network switch)
- Video wall (requires 1GB network switch)
- One-to-one HDMI extender (no network switch required)
- One-to-many HDMI extender (no network switch required) - Local 24-56V power supply (should Ethernet switch not support PoE) - sold separately
- Analogue L/R audio breakout
- Analogue L/R audio embedding
- HDCP 2.2 compliant with advanced EDID management
- PoE (Power over Ethernet) to power Blustream products from PoE switch
- Advanced signal management for independent routing of IR, RS-232, USB / KVM*, audio and video
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus, and DTS-HD Master Audio transmission
- Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI up to a distance of 100m over a single CAT cable
- Virtually unlimited system size
- Advanced UHD video over 1Gb Network
Our UHD Multicast distribution platform allows virtually latency free (1 frame) distribution of HDMI video over a 1GB Network switch.
The IP200UHD-TX is an industry leading 4K HDCP 2.2 HDMI transmitter that using visually lossless compression technology delivers HDMI, Bi-directional IR, RS-232 & USB/KVM up to lengths of 100m over standard network architecture.
The IP200UHD-TX can be powered via PoE from the Network switch or locally should the switch not support PoE. With multiple configuration options available the Multicast solution is ideal for both commercial and residential installations.
| Video Input: | 1 x HDMI Type A, female |
|---|---|
| Video Output: | 1 x LAN RJ45 connector |
| Latency: | 1 Frame (16-33ms depending on frame rate) |
| Audio Input: | 1 x 3.5mm L/R Analogue audio |
| Audio Output Connectors: | 2 x RCA L/R Analogue audio |
| Ethernet Port: | 1 x LAN RJ45 connector |
| RS-232 Serial Port: | 1 x 3-Pin Phoenix connector |
| USB / KVM Port: | 1 x USB - Type B |
| IR Input: | 1 x 3.5mm stereo jack |
| IR Output: | 1 x 3.5mm mono jack |
| PoE draw: | 6.0W (typical), 7.2W (max load) |
| Firmware Update: | 1 x Micro-USB |
| Mounting Kit | Included |
| Dimensions (W x D x H ): | 190mm x 114mm x 25mm |
| Shipping Weight: | 0.8kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C) |
