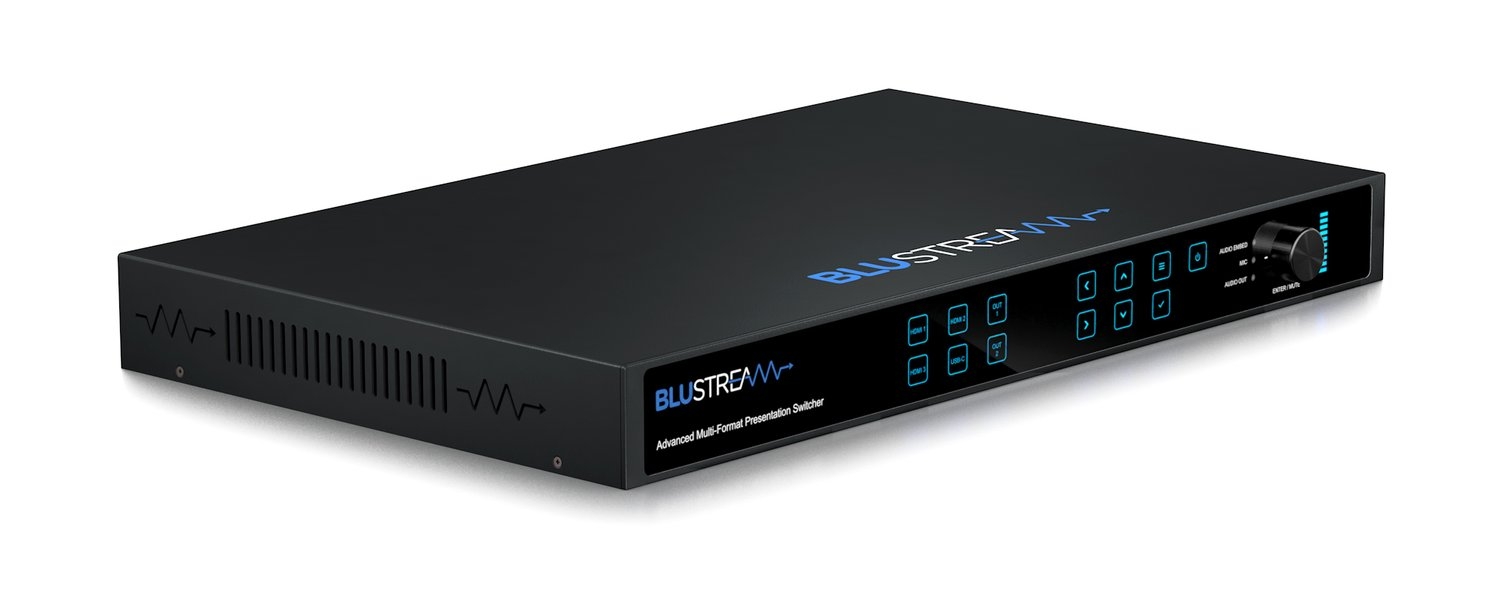

AMF42AU

4x2 Advanced Multi Format Presentation Switcher - 3 x HDMI, 1 x USB-C Inputs / 2 x HDMI, 1 x HDBaseT™ Output, includes Seamless Switching, Video Scaling, MIC Input with 48V Phantom Power, Audio Mixing, Web GUI with CEC Source & Display Control

• Features 3 x HDMI and 1 x USB-C inputs which can be independently routed to 2 x HDMI / HDBaseT™ outputs
• Dual HDMI / HDBaseT™ on output 2
• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable up to 70m 1080p (4K up to 40m)*
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification*
• Independent video scaling on outputs
• Supports resolutions up to 4K UHD 60Hz 4:4:4
• Seamless source switching with manual or auto source selection
• Supports USB Type C up to 4K UHD 60Hz 4:4:4, DP1.2 with 40W charging capability
• Audio breakout to analogue L/R audio and Toslink (S/PDIF) digital outputs concurrently
• ARC breakout available via S/PDIF when using RX70CS receiver
• Analogue audio inputs and output support both balanced and unbalanced audio
• Features MIC mixer over source audio with independent level adjustment
• MIC input supports line level or 48V Phantom power
• Configurable source and display control via CEC, RS-232 and IR
• Web interface module for control and configuration of matrix
• 3rd party drivers available for major control brands
• HDCP 2.2 compliant with advanced EDID management
