Distribución HDMI, Divisor HDMI

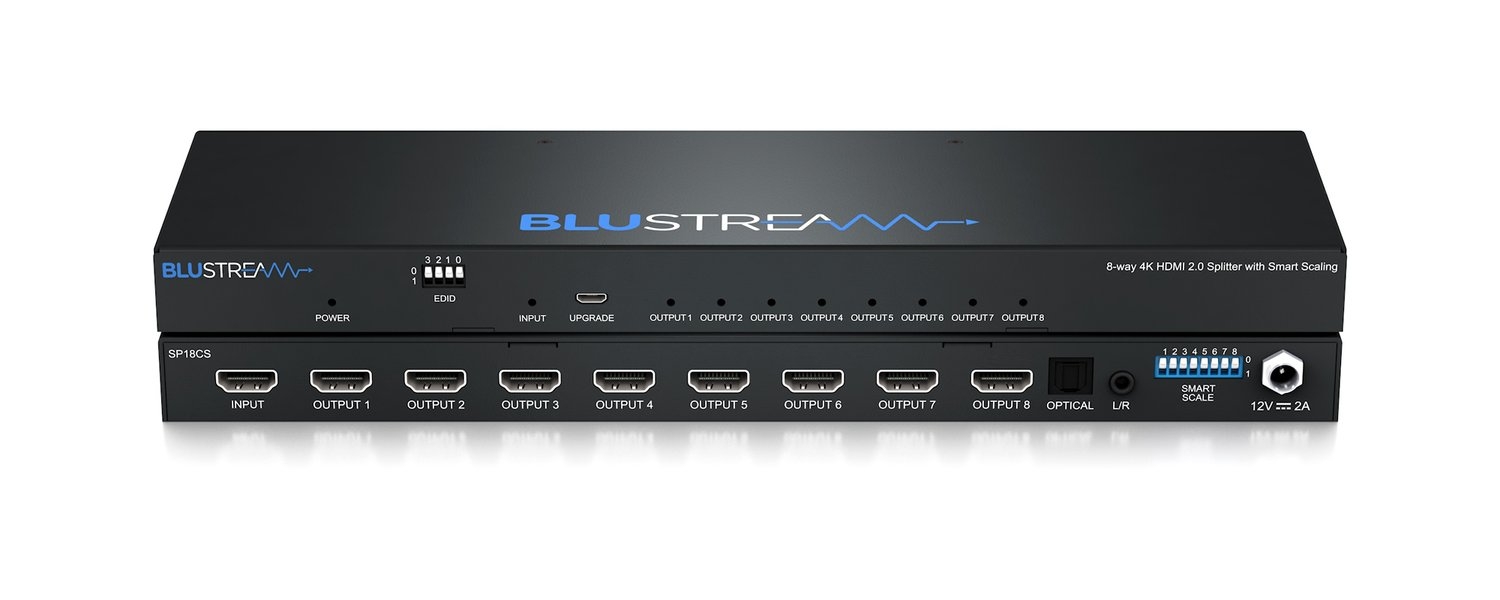

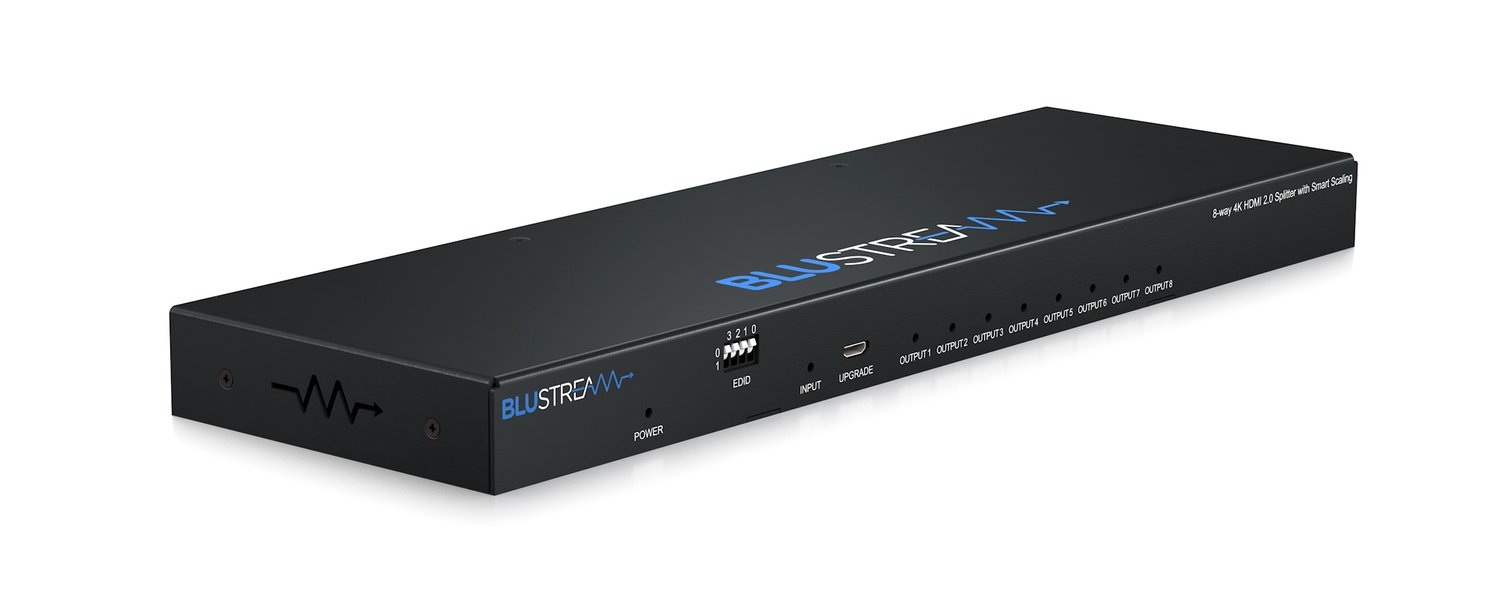

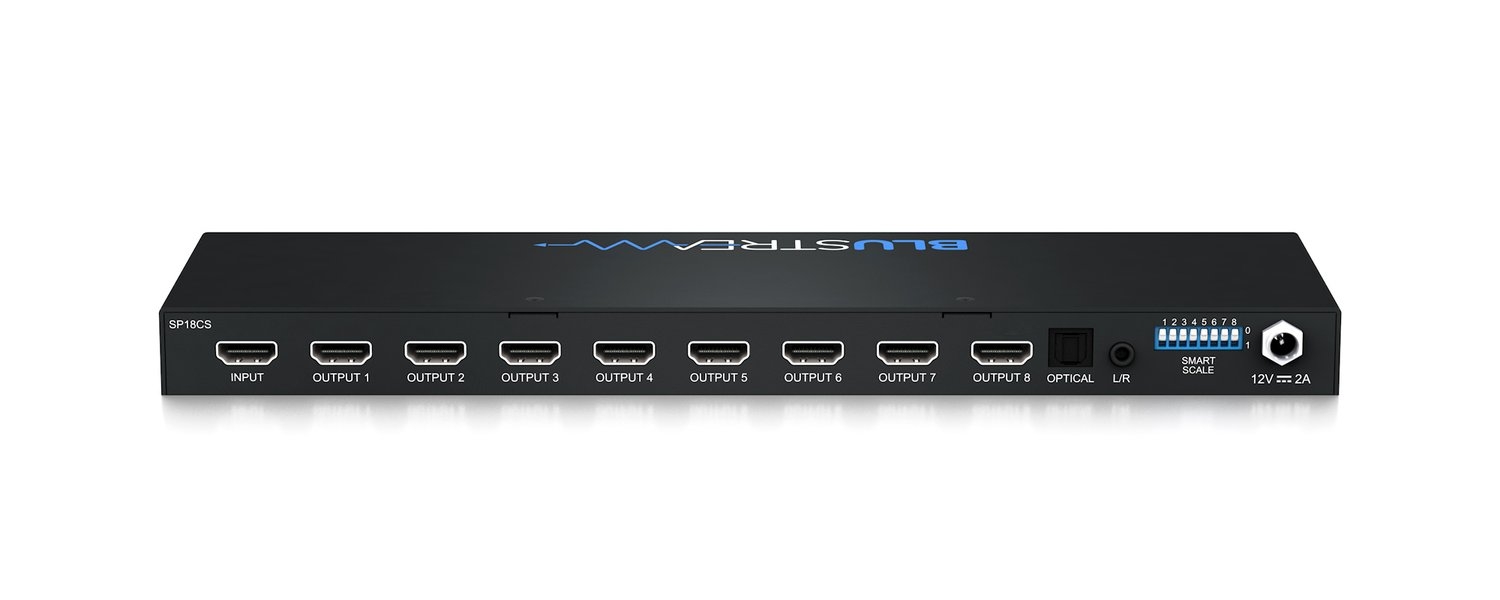

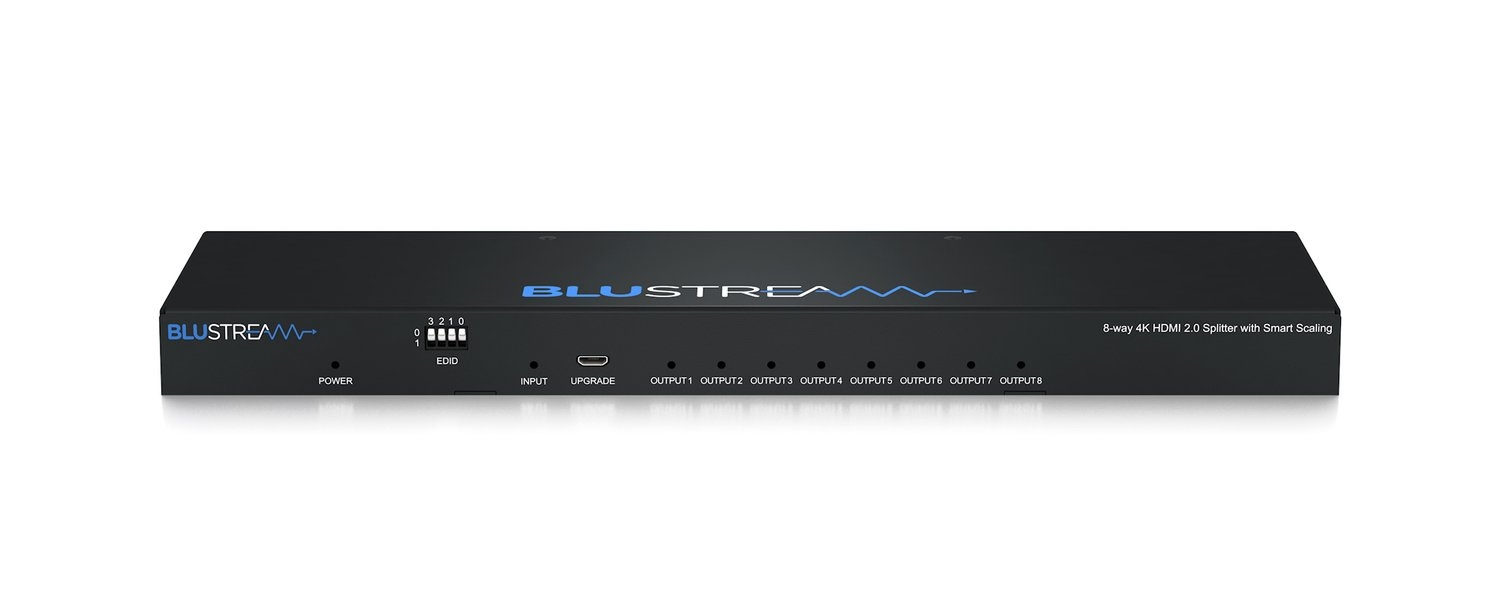

SP18CS

8-Way 4K HDMI 2.0 HDCP 2.2 Splitter with Smart Scaling, Audio Breakout and EDID Management

  • Features 1x HDMI input that is replicated to 8x HDMI outputs
  • Supports HDMI 2.0 18Gbps specification including HDR
  • Supports up to 4K UHD 60Hz 4:4:4 Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
  • Advanced EDID management
  • HDCP 2.2 Support

Our SP18CS 4K HDMI 2.0 splitter distributes a single HDMI source to eight simultaneous outputs with both digital (S/PDIF) and analogue audio breakout.
The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.

Video Input Connectors: 1x HDMI Type A
Video Output Connectors: 8x HDMI Type A
EDID: 4-PIN DIP switch
Smart Scale: 8-PIN DIP switch
Audio Output Connectors: 1x Digital (Optical), 1x Analogue audio L/R (3.5mm stereo Jack)
Dimensions (W x D x H): 300mm x 92mm x 23mm
Shipping Weight: 1.3kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature : -4°F to 140°F (-20°C to 60°C)
Power Supply: 12V/2A DC
