Distribución HDMI, Divisor HDMI
SP12CS
2-Way 4K HDMI 2.0 HDCP 2.2 Splitter with Smart Scaling, Audio Breakout and EDID Management
- Features 1x HDMI input that is replicated to 2x HDMI outputs
- Supports HDMI 2.0 18Gbps specification including HDR
- Supports up to 4K UHD 60Hz 4:4:4
- Video down-conversion on outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- HDMI audio breakout to analogue L/R audio and optical digital outputs concurrently
- Advanced EDID management
- HDCP 2.2 Support

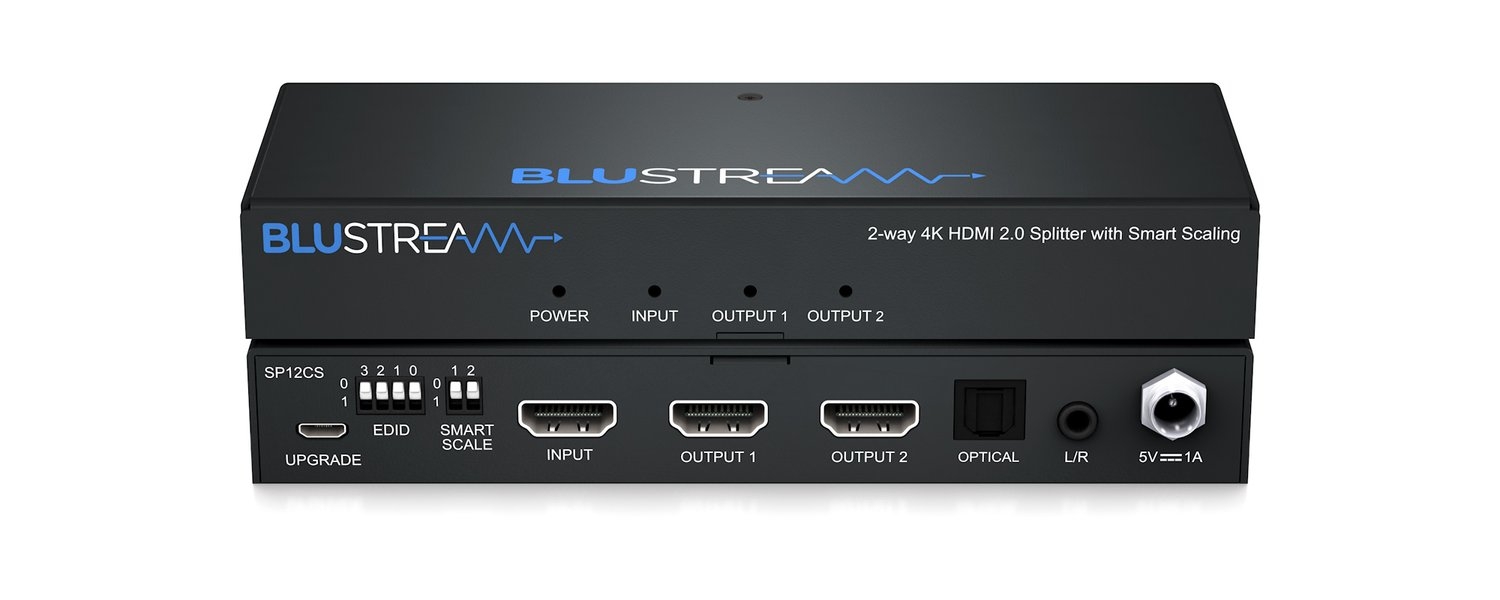

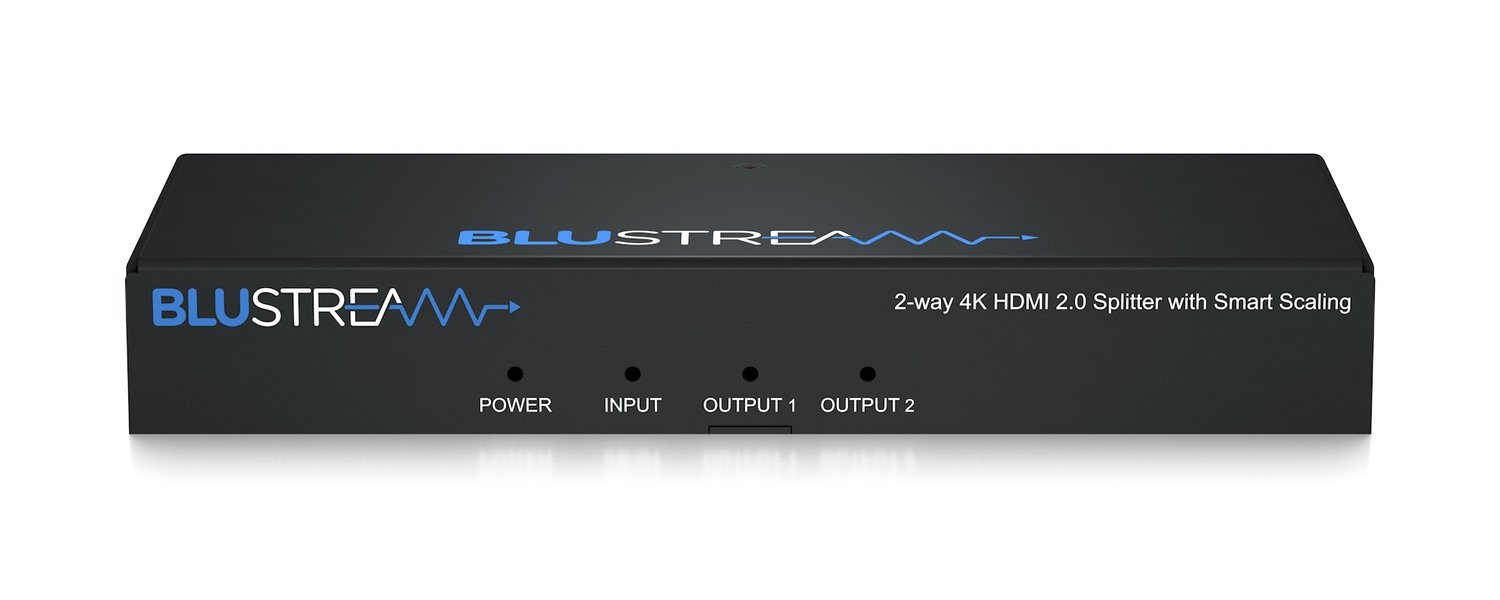

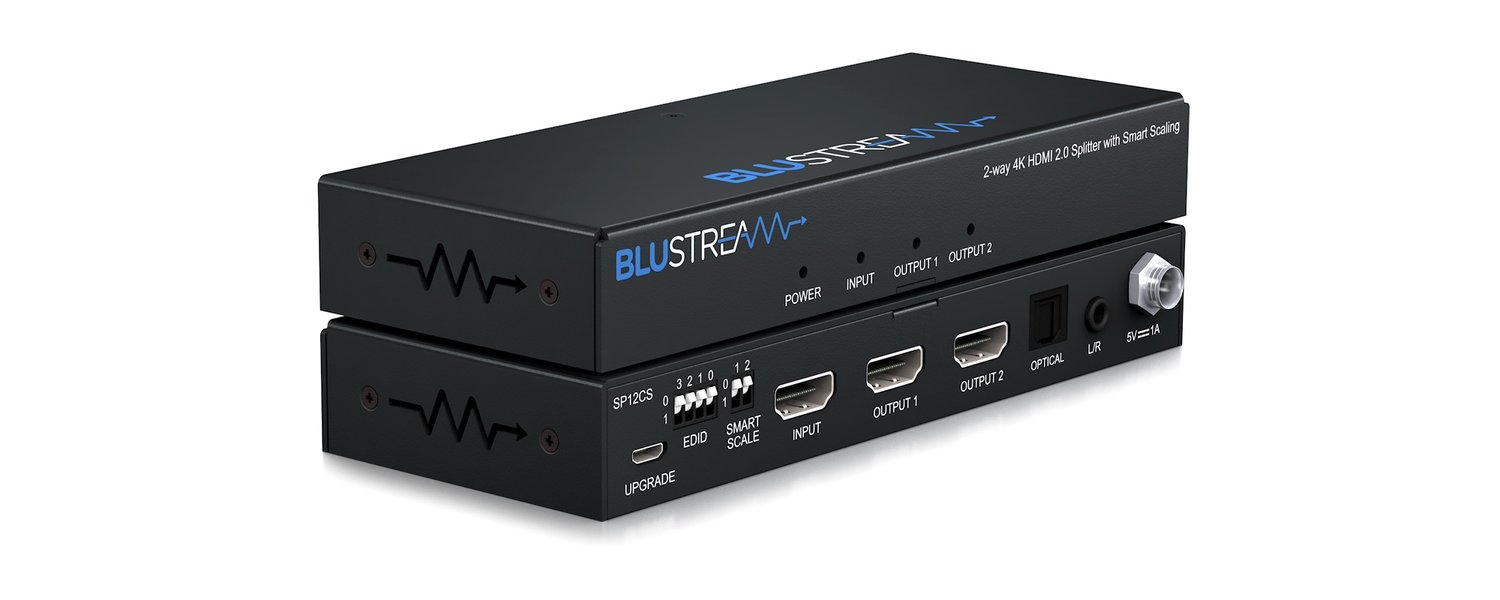

Our SP12CS 4K HDMI 2.0 splitter distributes a single HDMI source to two simultaneous outputs with both digital (S/PDIF) and analogue audio breakout.
The splitter supports full HDMI 2.0 and HDCP 2.2 with video resolutions up to and including 4K @ 60Hz 4:4:4 with automatic video down conversion on each output.

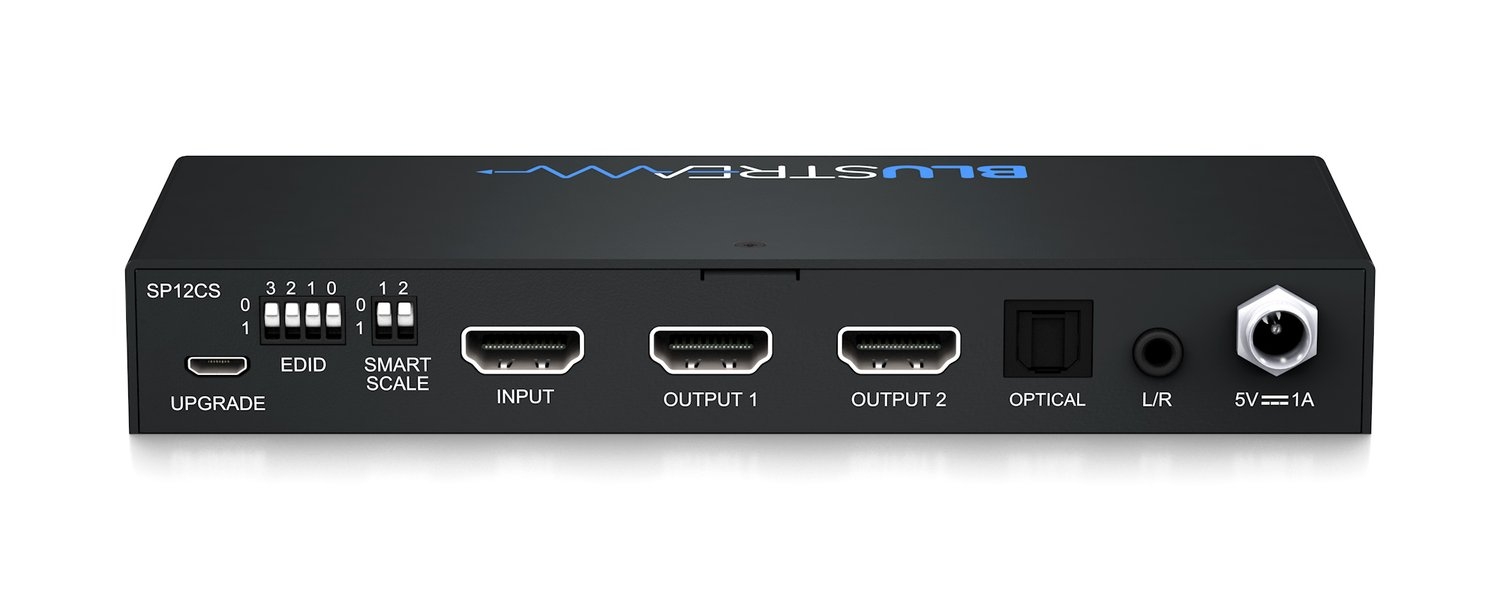

| Video Input Connectors: | 1x HDMI Type A |
|---|---|
| Video Output Connectors: | 2x HDMI Type A |
| EDID: | 4-PIN DIP switch |
| Smart Scale: | 2-PIN DIP switch |
| Audio Output Connectors | : 1x Digital (Optical), 1x Analogue audio L/R (3.5mm stereo Jack) |
| Dimensions (W x D x H): | 158mm x 64mm x 23mm , without feet |
| Shipping Weight: | 0.7kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature : | -4°F to 140°F (-20°C to 60°C) |
| Power Supply: | 5V/1A DC |
