Extensores HDBaseT™, HDBaseT™ Wallplate Transmitter
HEX31WPB-TX
2 x HDMI & 1 x USB-C Wall Plate HDBaseT™ Transmitter - HDMI, USB-C and RS-232 / IR up to 70m (4K up to 40m), Manual / Auto Source Switching, Advanced EDID Management
- Features 2 x HDMI & 1x USB-C inputs with manual / auto source selection
- Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Extends HDMI at 1080p up to a distance of 70m
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Input selection via front panel, IR or RS-232
- Programmable ON / OFF button utilising IR, RS-232 or CEC for control of display device at HDBaseT™ receiver
- Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products
- Bi-directional RS-232 pass through
- Supports IR pass-through to HDBaseT™ device
- Compatible with all Blustream HDBaseT™ receiver / matrix products *
- Magnetic faceplate surround allowing both UK & EU back box compatibility
- HDCP 2.2 support
Our HEX31WPB-TX HDMI/USB-C wall plate HDBaseT™ Transmitter is a multi-format 4K input switcher solution delivering HDMI and USB-C inputs up to 70m at 1080p (40m 4K 60Hz 4:2:0).
The HEX31WPB-TX features both manual or automated source selection and includes display on / off control via CEC, RS-232 and IR (via compatible HDBaseT™ receivers / Matrix).
The HEX31WPB-TX has been designed to work with all Blustream HDBaseT™ receiver and matrix solutions, be installed in both UK and European back boxes and can be powered locally or from compatible Blustream HDBaseT™ products.

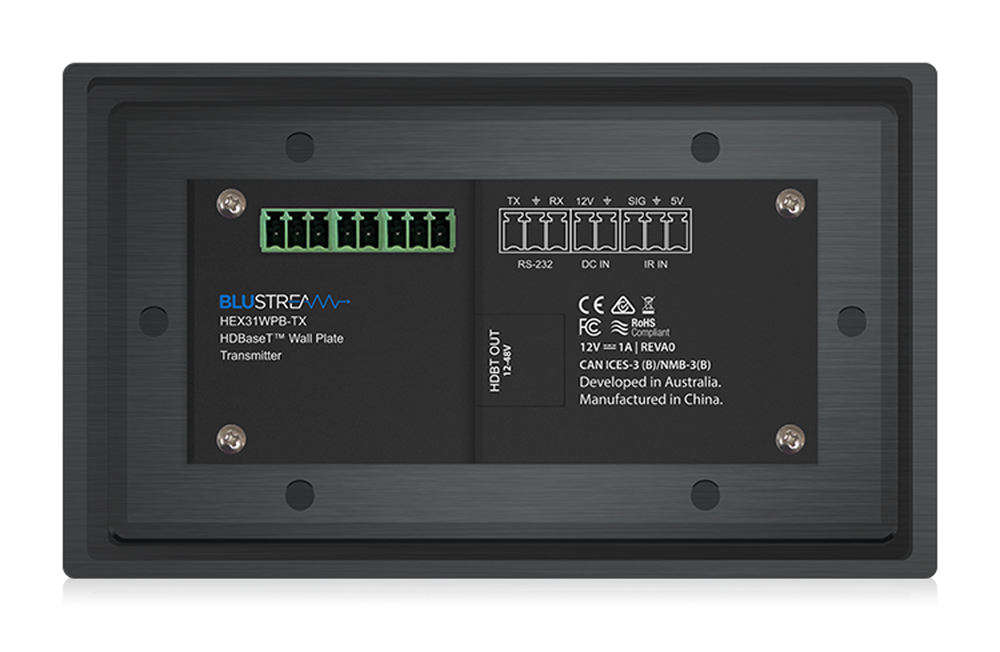

| Video Input Connectors: | 2 x HDMI Type A, 19-pin, female, 1 x USB-C Type C |
|---|---|
| Video Output Connectors: | 1 x HDBaseT™ RJ45 connector |
| RS-232 Serial Port: | 1 x 3-Pin Phoenix connector |
| IR Input Port: | 1 x 3-Pin Phoenix connector |
| Product Upgrade: | 1 x Micro USB female |
| Local Power Input: | 1 x 2-Pin Phoenix connector |
| Casing Dimensions (W x H x D): | 136mm x 76mm x 44mm (without faceplate) |
| Casing Dimensions (W x H x D): | 146mm x 86mm x 44mm (with faceplate) |
| Faceplate Dimensions (W x H x D): | 146mm x 86mm x 6mm |
| Backbox Housed Unit Dimensions (W x H x D): | 109mm x 49mm x 35mm (part of unit housed inside backbox) |
| Backbox Mounting Depth: | 40mm (minimum) - backbox not supplied |
| Shipping Weight: | 2.8kg |
| Operating Temperature: | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature: | -4°F to 140°F (-25°C to +70°C) |
| Power Supply: | 12V/1A DC |
