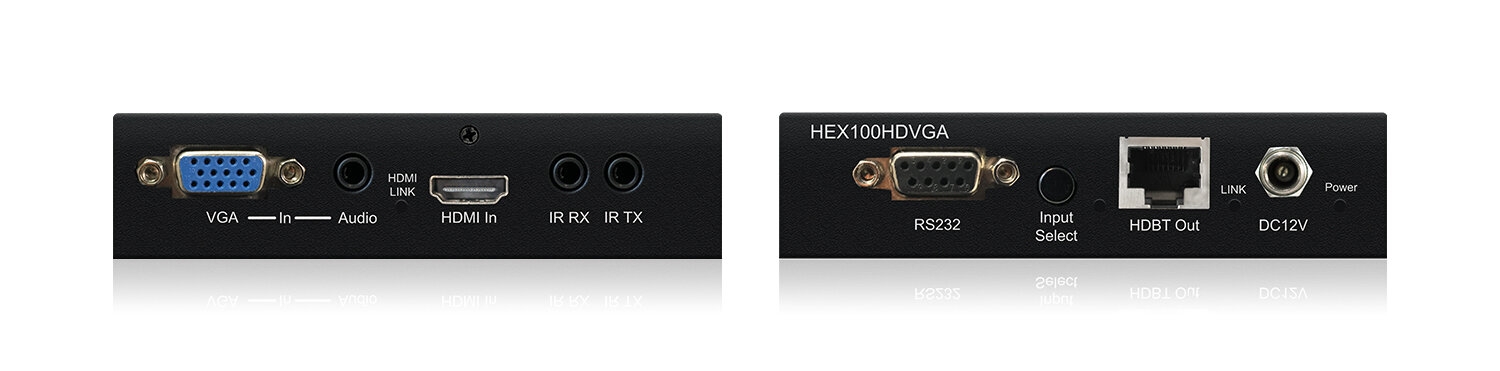

HEX100HDVGA-TX
HDMI / VGA HDBaseT™ Transmitter
- Extends HDMI and VGA / Audio up to a distance of 100m over single CAT cable
- Auto signal sensing switches between HDMI and VGA/Audio inputs, will display last input signal connected
- Manual switching between inputs using toggle button or RS-232 control on transmitter
- Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports bi-directional RS-232 pass-through
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supplied with Blustream IR receiver and emitter
- Supports bi-directional PoC (Power over Cable)
- HDCP compliant
Our HEX100HDVGA-TX is an industry leading 4K HDBaseT™ solution that extends HDMI and VGA inputs up to 100m.
The HEX100HDVGA Transmitter features auto-sensing signal switching of video inputs and conversion of the VGA/audio input to the HDMI / HDBaseT™ output.
The HDBaseT™ transmitter also features bi-directional IR, RS-232, and PoC (Power over Cable) to a compatible HDBaseT™ receiver or matrix.
| Audio Input Connectors: | 1 x Analogue Left / Right 3.5mm stereo jack |
|---|---|
| Video Input Connectors: | 1 x HDMI Type A & 1x VGA (DB-15) |
| Video Output Connectors: | 1 x HDBaseT™ RJ45 connector |
| IR Input Ports: | 1 x 3.5mm stereo jack |
| IR Output Ports: | 1 x 3.5mm mono jack |
| RS-232 Serial Port: | 1 x DB9, female |
| Mounting Brackets | Included |
| Balun Dimensions (W x D x H): | 115mm x 135mm x 30mm (with connections) |
| Balun Dimensions (W x D x H): | 115mm x 125mm x 30mm (without connections) |
| Ind. Balun Weight: | 0.35kg (excluding accessories) |
| Carton / Box Dimensions (W x D x H): | 300mm x 155mm x 90mm |
| Shipping Weight: | 1.2kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C) |
| Power Supply: | 12V/2A DC, screw type connector |
