Extensores HDBaseT™, Extensor HDBaseT™ de 70 M.
HEX70USB-KIT
HDBaseT™ USB Extender Set - 70m (4K 60Hz 4:2:0 up to 40m), USB 2.0 Extension, Bi-directional IR & RS-232, Audio Breakout, Bi-directional PoC, and HDCP 2.2
- Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
- Extends HDMI 1080p up to a distance of 70m over a single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
- HEX70USB-KIT features 4x USB Type-A devices (RX - peripherals) and 1x USB Type-B (TX - host) that support a combined data transmission bandwidth of up to 280Mbps
- USB Type-A connections support 5V 500mA output per port
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmissions
- Bi-directional IR pass-through
- Bi-directional RS-232 pass-through
- Supplied with Blustream IR receiver and emitter
- Supports bi-directional PoC (Power over Cable) to power extenders from either Transmitter or Receiver end
- HDCP 2.2 compliant with advanced EDID management
- HDMI audio breakout to analogue L/R audio and Optical digital (S/PDIF) outputs concurrently
The HEX70USB-KIT 4K HDBaseT™ USB 2.0 extender set offers the very best in performance and flexibility, delivering HDMI to lengths of 70m (4K 60Hz 4:2:0 to 40m), USB 2.0 extension, bi-directional IR and RS-232, HDMI audio breakout, bi-directional PoC, and advanced EDID management. HDCP2.2 compliant.

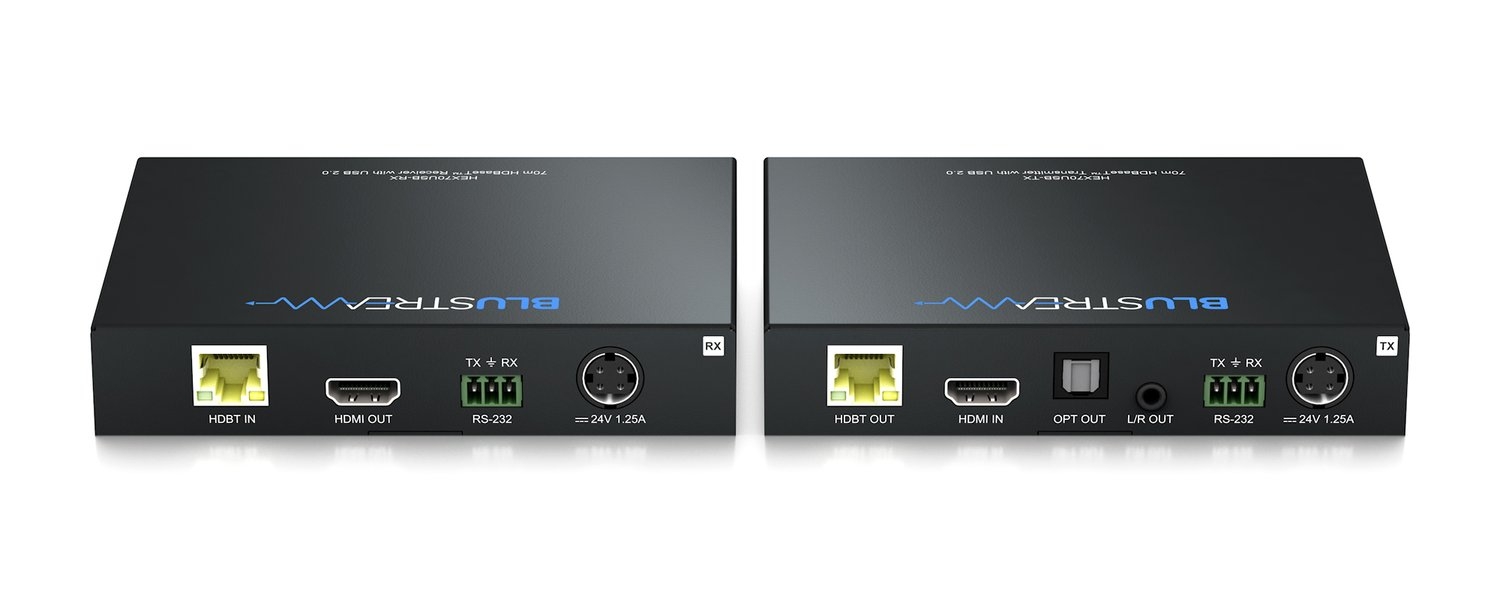

| Modelo: | HEX70USB-TX |
|---|---|
| Video Input Connectors: | 1 x HDMI Type A, 19-pin, female |
| Video Output Connectors: | 1 x HDBaseT™ RJ45 connector |
| RS-232 serial port: | 1 x 3-pin Phoenix connector |
| USB/KVM Port: | 1 x USB Type-B (Host) |
| IR Input ports: | 1 x 3.5mm stereo jack |
| IR Output ports: | 1 x 3.5mm mono jack |
| Modelo: | HEX70USB-RX |
| Video Input Connectors: | 1 x HDBaseT™ RJ45 connector |
| Video Output Connectors: | 1 x HDMI Type A, 19-pin, female |
| Audio Output Connectors: | 1 x Toslink (S/PDIF), 1 x 3.5mm L/R Analogue audio |
| RS-232 serial port: | 1 x 3-pin Phoenix connector |
| USB/KVM Port: | 4 x USB Type-A (Peripherals) |
| IR Input ports: | 1 x 3.5mm stereo jack |
| IR Output ports: | 1 x 3.5mm mono jack |
| Casing Dimensions (W x D x H ): | 135mm x 105mm x 25mm (TX/RX) |
| Shipping Weight (Kit): | 0.8kg |
| Operating Temperature: | 32°F to 104°F (-5°C to +55°C) |
| Storage Temperature: | -4°F to 140°F (-25°C to +70°C) |
| Power Supply: | 24V/1.25A DC, 4-pin DIN connector |
