Extensores HDBaseT™, Extensor HDBaseT™ de 70 M.

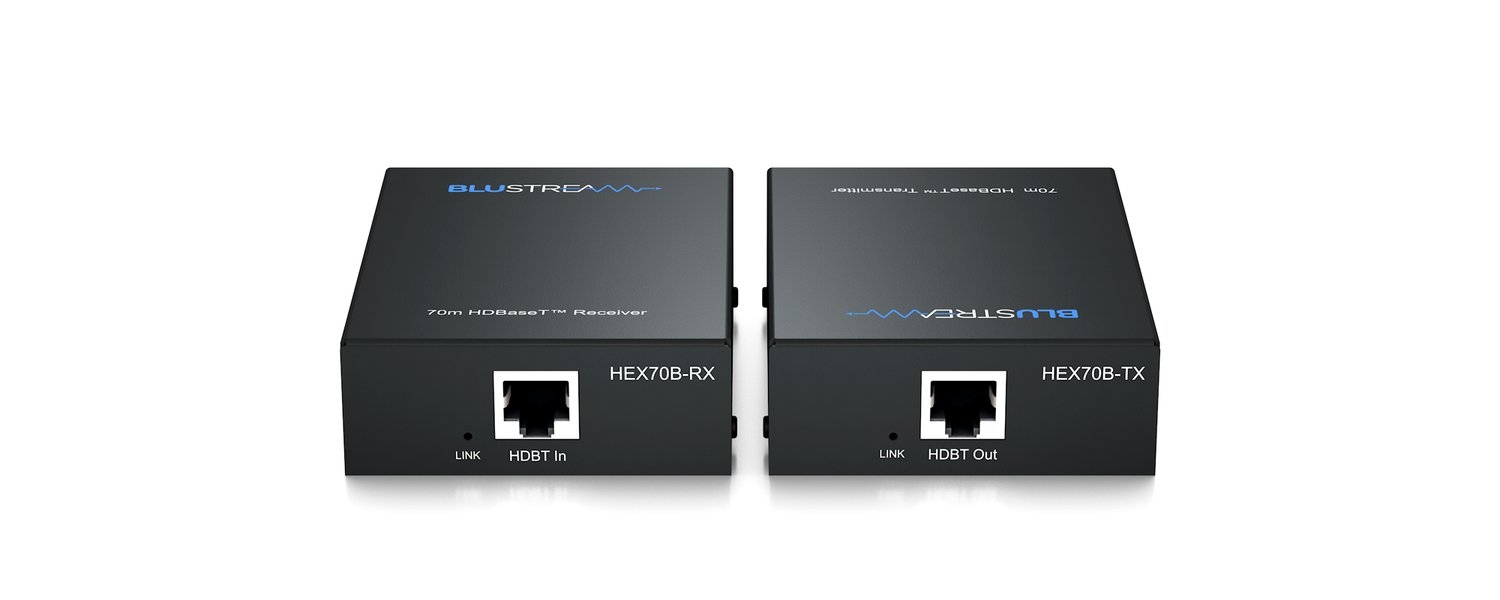

HEX70B-KIT
HDBaseT™ Extender Set - 70m (4K up to 40m), Bi-directional IR, Bi-directional PoC
- Extends HDMI up to distances of 70m over single CAT cable
- Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K@50/60Hz 4:2:0)
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports 3D signal display
- Supports CEC bypass (Consumer Electronics Control)
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
- Supports bi-directional IR from all input and output locations
- Supplied with Blustream IR receiver and emitters
- Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- HDCP 2.2 compliant
Our HEX70B-KIT 4K HDBaseT™ extender set offers market leading features and outstanding value. The product delivers HDMI, Bi-directional IR and Bi-directional PoC up to lengths of 70m.
| Video Input: |
- HEX70B-TX: 1 x HDMI Type A, 19-pin, female
- HEX70B-RX: 1 x HDBaseT™ RJ45 |
|---|---|
| Video Output: |
- HEX70B-TX: 1 x HDBaseT™ RJ45 - HEX70B-RX: 1 x HDMI Type A, 19-pin, female |
| IR Input Ports: | 2 x 3.5mm stereo jack |
| IR Output Ports: | 2 x 3.5mm mono jack |
| Power Supply: | 12V/2A DC, screw type connector |
| Power Consumption: | 9.5W |
| Ind. Extender Dimensions (W x D x H): | 105mm x 73mm x 27mm, without connections |
| Ind. Extender Dimensions (W x D x H): | 110mm x 75mm x 27mm, with connections |
| Ind. Unit Weight: | 0.25kg |
| Box Dimensions (W x D x H): | 295mm x 155mm x 80mm |
| Shipping Weight: | 0.95kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature: | -4°F to 140°F (-20°C to 60°C) |
| Mounting Kit | Included |
