Extensores HDBaseT™, Extensor HDBaseT ™ sin comprimir de 18 Gbps

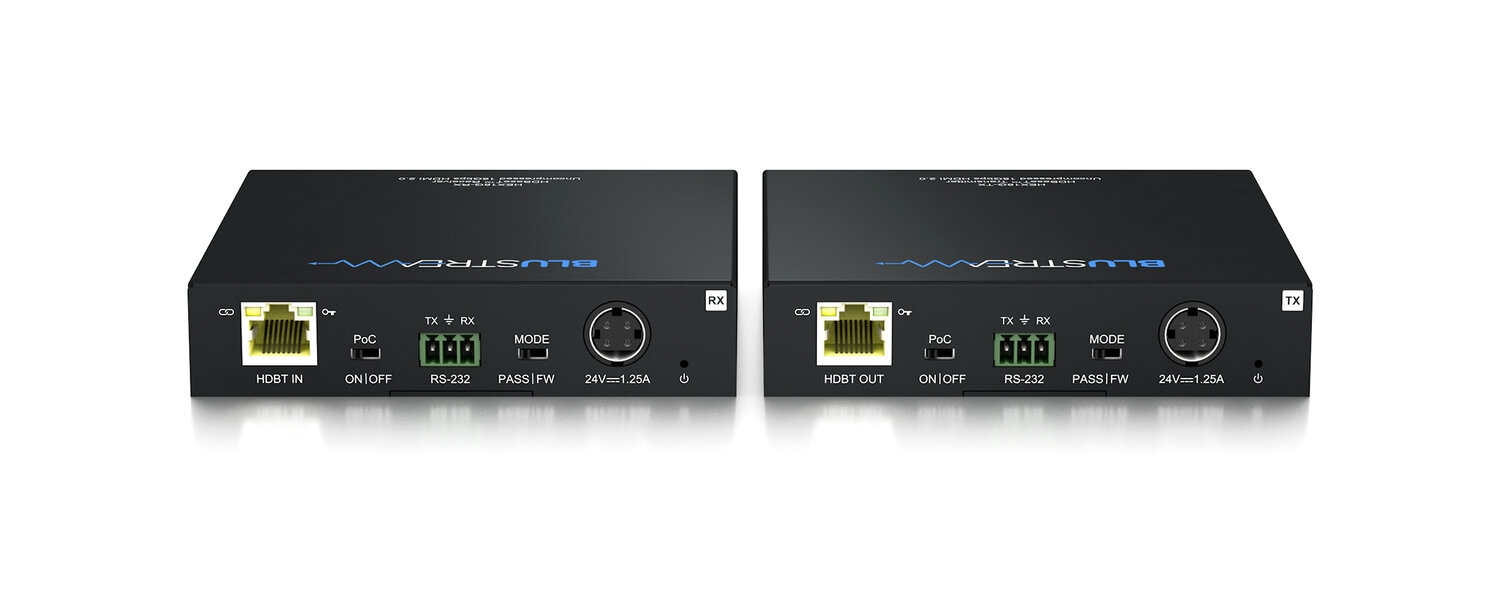

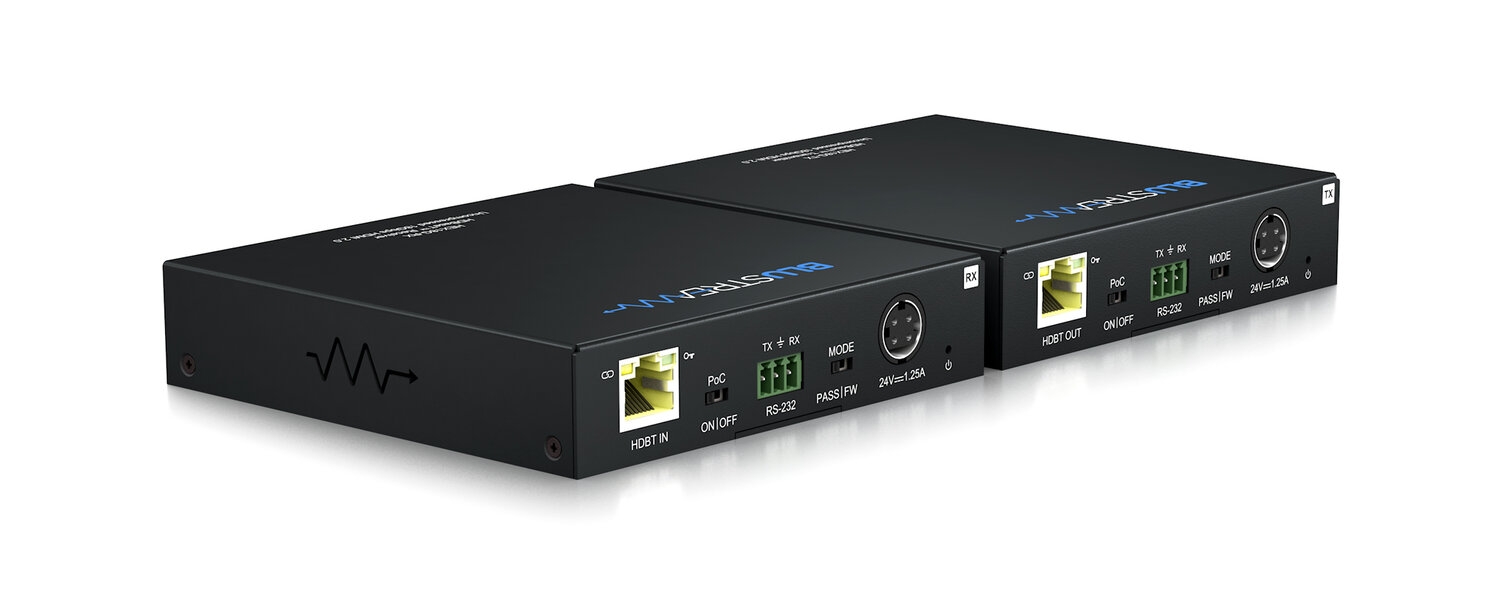

HEX18G-KIT
Advanced HDBaseT™ Extender Kit Supporting Uncompressed and Unconverted HDMI 2.0 4K 60Hz 4:4:4 up to 100m, Bi-directional IR, HDCP 2.3
- HDBaseT spec 3.0 offers the first true solution for uncompressed and unconverted, bit-exact distribution of HDMI2.0 signals up to 18Gbps (4K 60Hz 4:4:4) over CAT6A cabling up to 100m
- Supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision
- Supports HDMI video distribution up to 100m*
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- HDMI re-clocking on the HDBaseT™ Receiver to help solve HDMI HDCP, compatibility and handshaking issues
- Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
- Bi-directional IR & RS-232 pass through
- Supplied with Blustream IR receiver and emitter
- Bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
- Support for HDCP 2.3, HDCP 2.2 and HDCP 1.4
- *Transmission distance is subject to video format, cable type and installation environment. It is recommended to use a minimum of CAT6A cabling
The HEX18G-KIT extender set is an industry leading uncompressed, unconverted HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.3/2.2 solution utilising the latest in HDBaseT™ technology.
The HEX18G-KIT supports uncompressed distribution of the latest HDR resolutions including HDR10/10+ and Dolby Vision resulting in the ultimate in picture quality for your critical viewing areas.
The HEX18G-KIT supports bi-directional IR, RS-232 and PoC up to lengths of 100m over a single CAT6A cable.
| Modelo: | HEX18G-TX |
|---|---|
| Video Input Connectors: | 1x HDMI Type A, female |
| Video Output Connectors: | 1x HDBaseT™ RJ45 connector |
| IR Input ports: | 1x 3.5mm stereo jack |
| IR Output ports: | 1x 3.5mm mono jack |
| RS-232 serial port: | 1x 3-pin Phoenix connector |
| Power Supply: | 1x 24V/1.25A DC |
| Modelo: | HEX18G-RX |
| Video Input Connectors: | 1x HDBaseT™ RJ45 connector |
| Video Output Connectors: | 1x HDMI Type A, female |
| IR Input ports: | 1x 3.5mm stereo jack |
| IR Output ports: | 1x 3.5mm mono jack |
| RS-232 serial port: | 1x 3-pin Phoenix connector |
| Power Supply: | 1x 24V/1.25A DC |
| Casing Dimensions (W x D x H ): | 95mm x 116mm x 24mm (TX and RX) |
| Shipping Weight (Kit): | 1.5kg |
| Operating Temperature: | 32°F to 104°F (0°C to 40°C) |
| Storage Temperature : | -4°F to 140°F (-20°C to 60°C) |
| Mounting kits | included |
| Power Supply: | 1x 24V/1.25A DC |
